P0706-Transmission Range Sensor Rationality: Notes

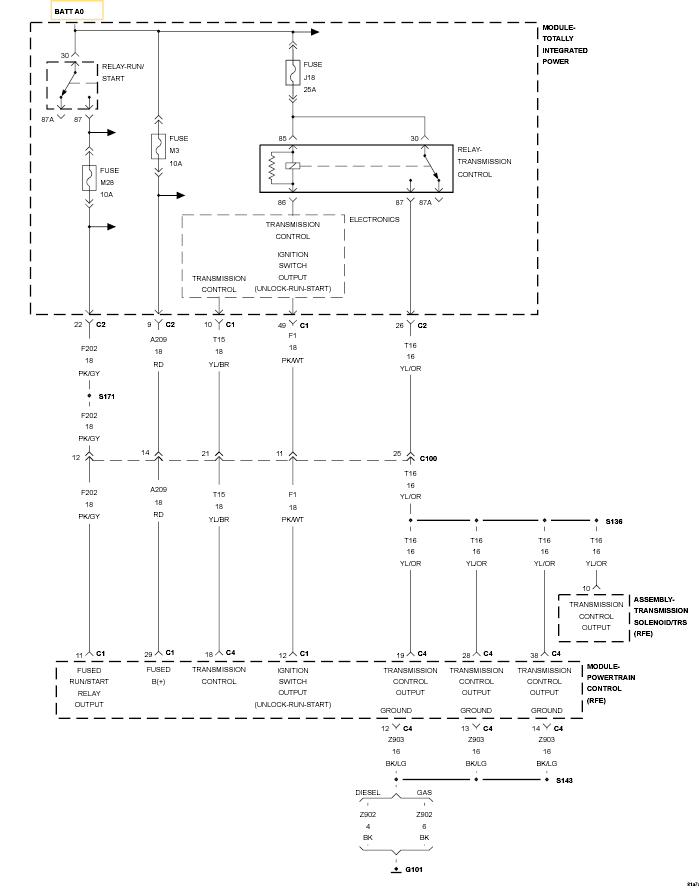

Fig 1: Transmission Range Sensor Circuit
GC0132021Courtesy of CHRYSLER LLC
