Home › Jeep › 2009 › Wrangler X, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › (Transmission Control Module (TCM) - Electrical Diagnostics) › DTC Troubleshooting › P0721-Output Speed Sensor Circuit Performance › Notes

P0721-Output Speed Sensor Circuit Performance: Notes

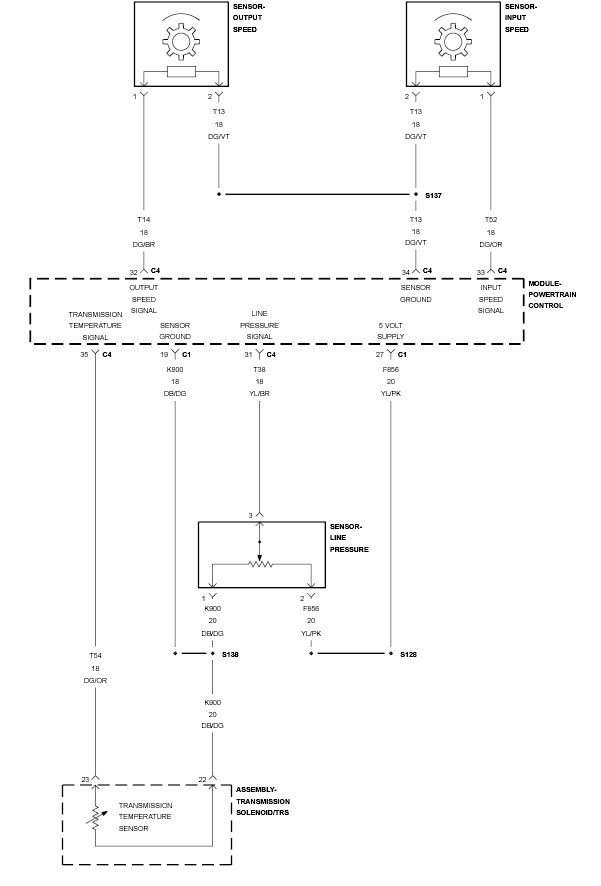

Fig 1: Transmission Temperature Sensor Circuit
GC0132022Courtesy of CHRYSLER LLC
