Home › Jeep › 2009 › Wrangler X, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › (Transmission Control Module (TCM) - Electrical Diagnostics) › DTC Troubleshooting › P0890-Switched Battery › Notes

P0890-Switched Battery: Notes

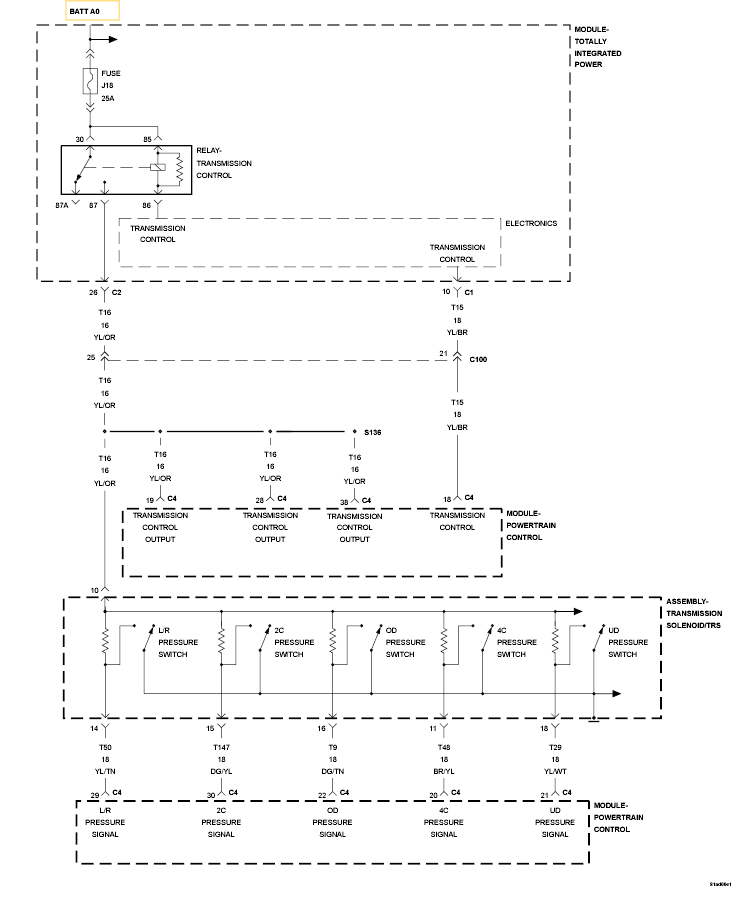

Fig 1: LR Pressure Switch Circuit
GC0132024Courtesy of CHRYSLER LLC
