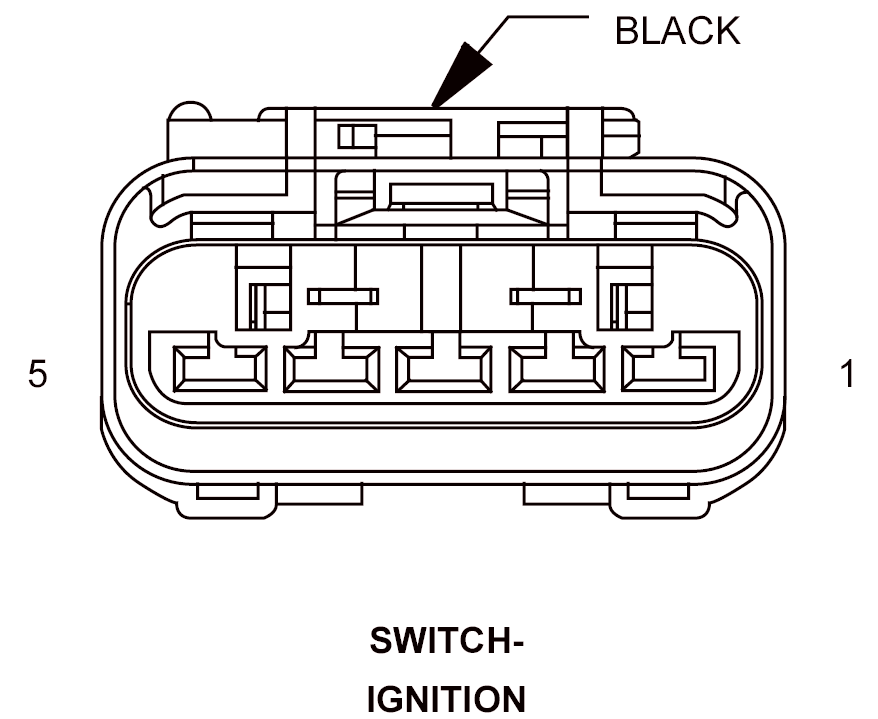

Ignition Switch Connector End View

SWITCH-IGNITION - BLACK 5 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z914 20BK	GROUND
2	G20 22VT/BR	IGNITION SWITCH SENSE
3	F20 20PK/WT	IGNITION SWITCH OUTPUT (RUN-START)
4	-	-
5	A106 18LB/RD	FUSED B(+)
