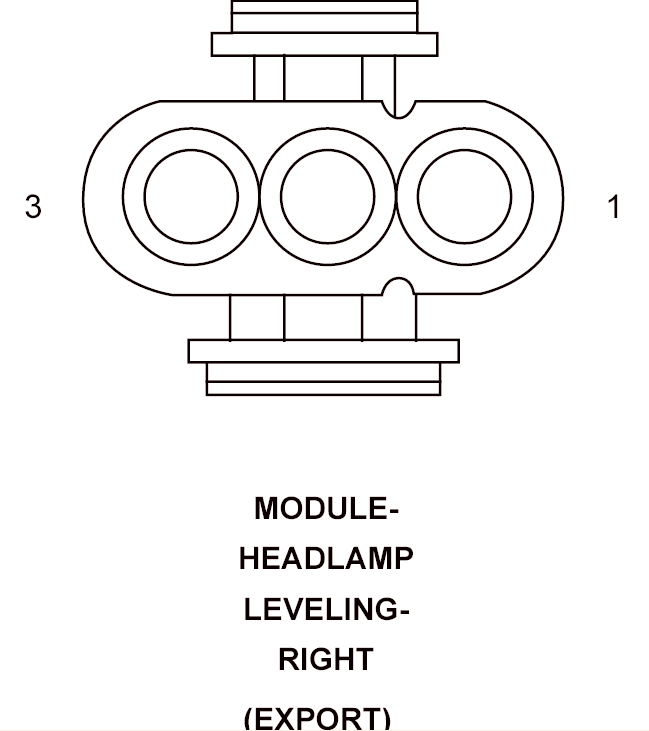

Right Headlamp Leveling Module (Export) Connector End View
MODULE-HEADLAMP LEVELING-RIGHT - 3 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L13 18WT/YL |
HEADLAMP ADJUST SIGNAL |
| 2 |
L135 18WT |
HEADLAMP LEVEL CONTROL SIGNAL |
| 3 |
Z904 18BK |
GROUND |
