Home › Jeep › 2009 › Wrangler X, Standard › Repair and Diagnosis › Engine Performance › System › DTCS P0205 To P0440 - NGC › P0440-General EVAP System Failure › Notes

P0440-General EVAP System Failure: Notes

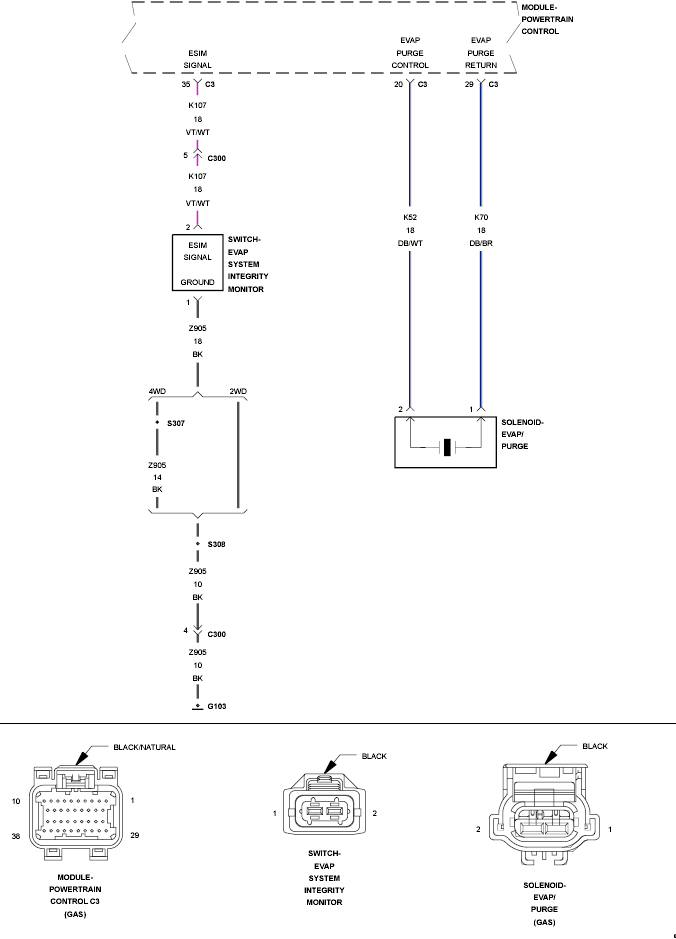

Fig 1: EVAP Purge Solenoid Circuit
GC0131916Courtesy of CHRYSLER LLC
