P0850-Park/Neutral Switch Performance: Notes

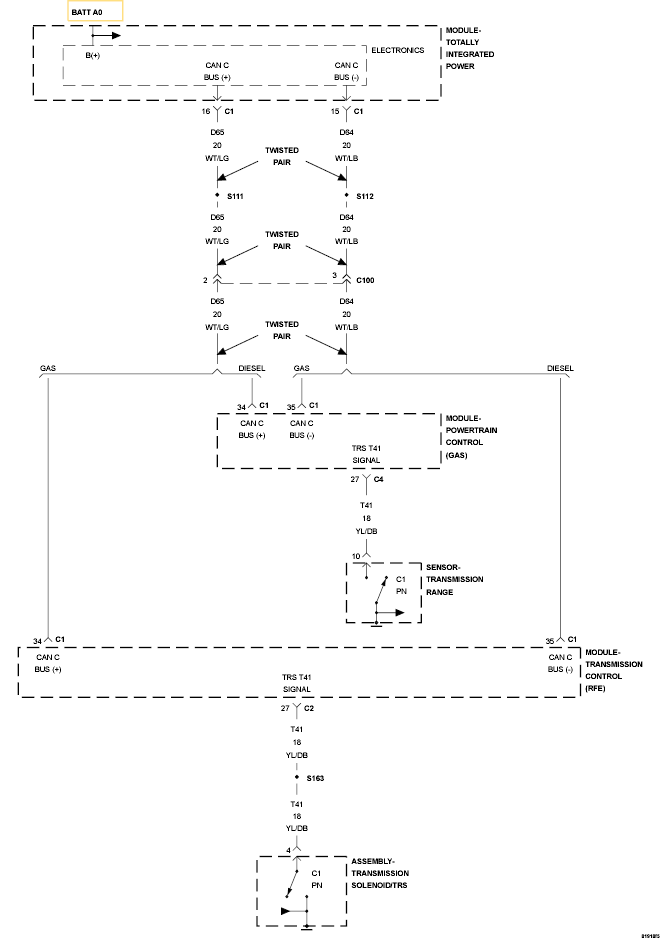

Fig 1: Park/Neutral Switch Circuit
GC0131937Courtesy of CHRYSLER LLC
