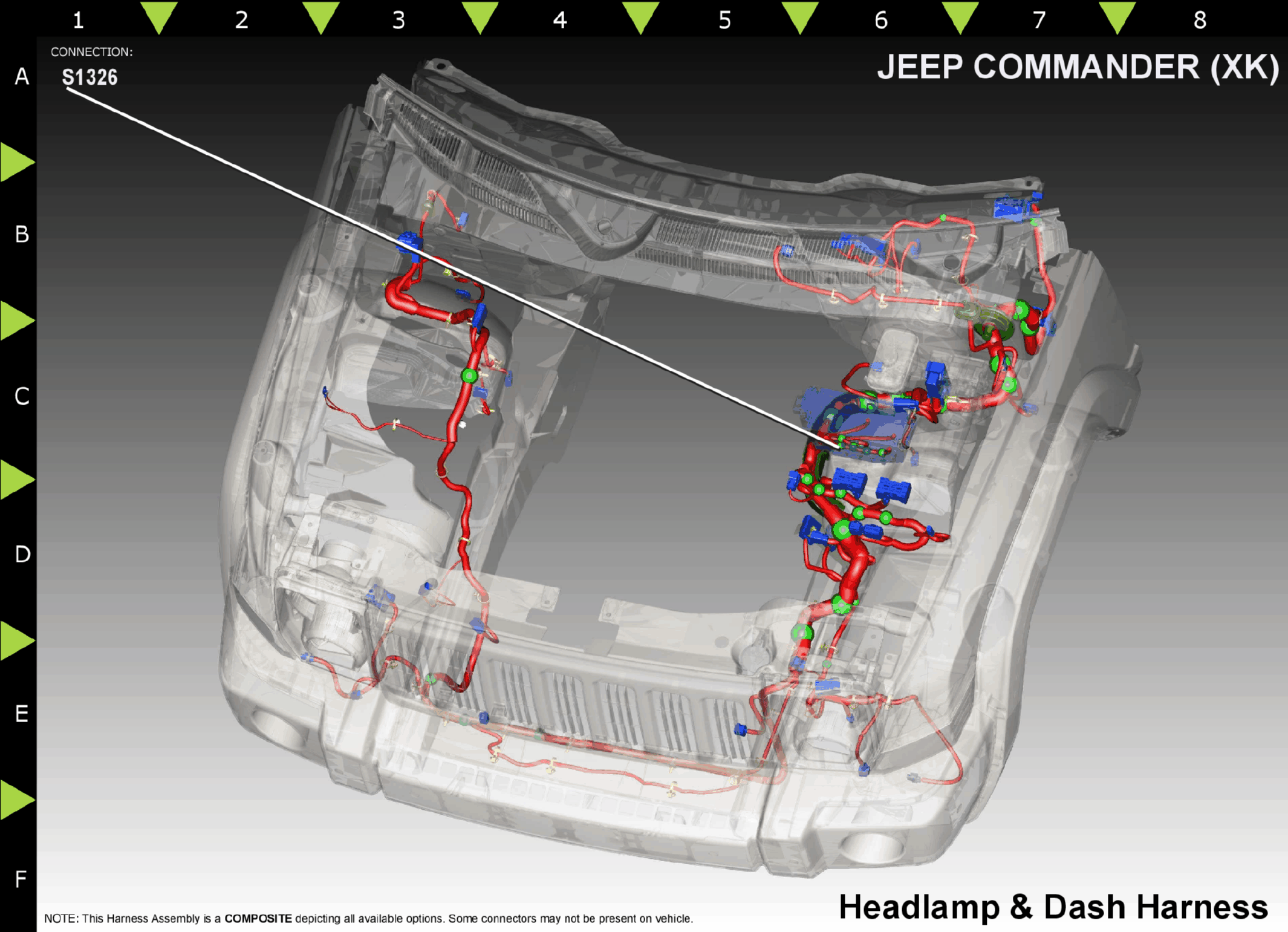

Connector End Views & Electrical Component Locations: S126
Harness-Family: HDLP_Dash
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S1326
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | A901 | RD/TN | 12 | FUSED B(+) | N/A | ||
| 2 | A901 | RD/TN | 12 | FUSED B(+) | N/A | ||
| 3 | A901 | RD/TN | 12 | FUSED B(+) | N/A | ||
|
|||||||
