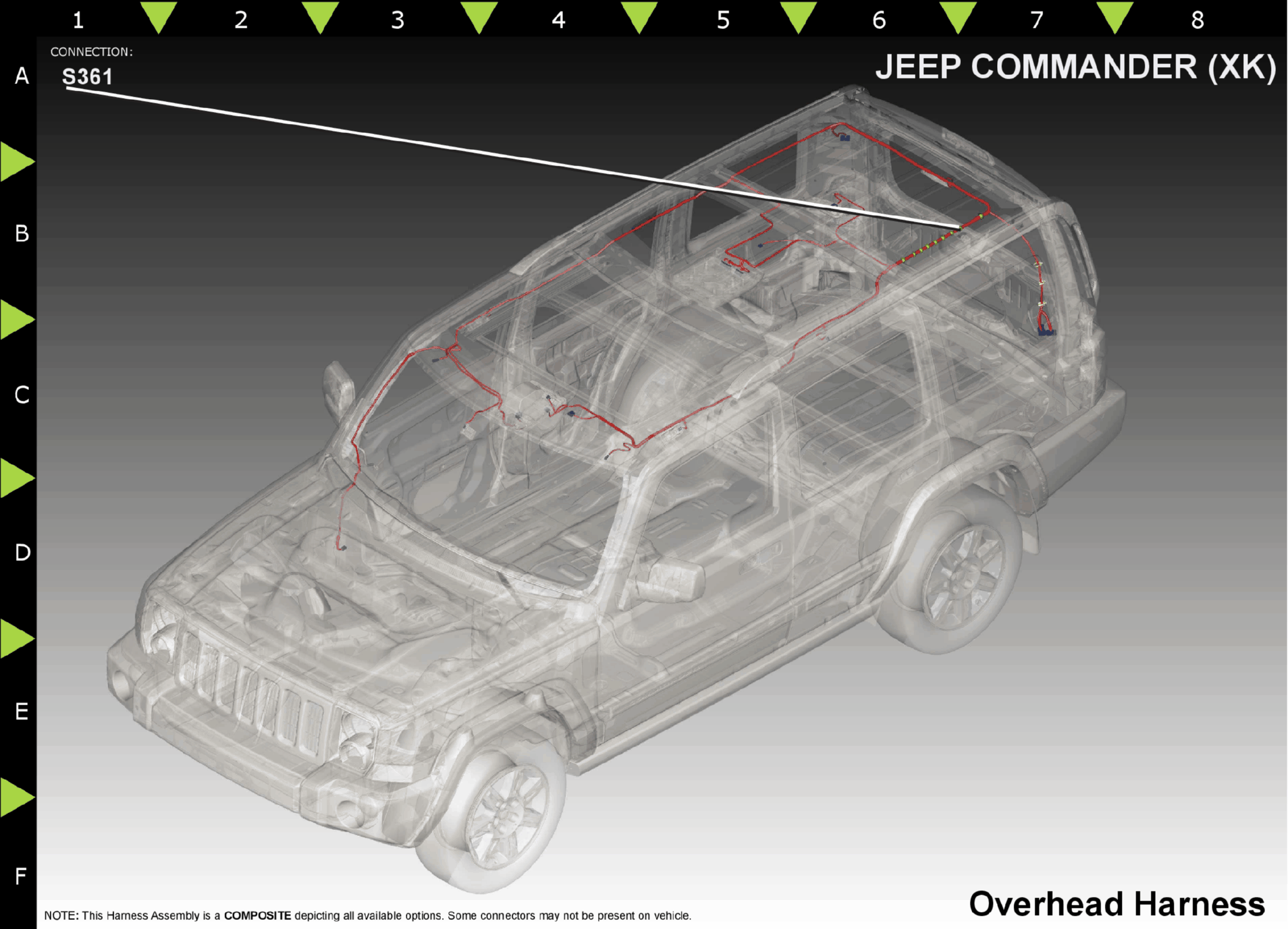

Connector End Views & Electrical Component Locations: S361
Harness-Family: Overhead
Color: NA
Gender: FEMALE
Part Number: TBD
Part Description: Not Available
Connector No: S361
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | M22 | YL/OR | 20 | COURTESY LAMPS DRIVER | N/A | ||
| 2 | M22 | YL/OR | 20 | COURTESY LAMPS DRIVER | N/A | ||
| 3 | M22 | YL/OR | 20 | COURTESY LAMPS DRIVER | N/A | ||
| 4 | M22 | YL/OR | 20 | COURTESY LAMPS DRIVER | N/A | ||
| 5 | M22 | YL/OR | 20 | COURTESY LAMPS DRIVER | N/A | ||
| 6 | M22 | YL/OR | 20 | COURTESY LAMPS DRIVER | N/A | ||
|
|||||||
