CHAIN and SPROCKETS, Timing: Installation: Installation

Fig 1: Crankshaft Sprocket

Courtesy of CHRYSLER LLC

1. Install the crankshaft sprocket (1) and position halfway onto the crankshaft.
   Fig 2: Aligning Timing Chain & Camshaft Phaser Marks

   Courtesy of CHRYSLER LLC
2. While holding the camshaft phaser in hand, position the timing chain on the camshaft phaser and align the timing marks as shown in illustration.
   Fig 3: Aligning Timing Chain & Crankshaft Sprocket Marks

   Courtesy of CHRYSLER LLC
3. While holding the camshaft phaser and timing chain in hand, position the timing chain on the crankshaft sprocket and align the timing mark as shown in illustration.
   Fig 4: Camshaft Phaser Retaining Bolt

   Courtesy of CHRYSLER LLC
4. Align the slot in the camshaft phaser with the dowel on the camshaft and position the camshaft phaser on the camshaft while sliding the crankshaft sprocket into position.
5. Install the camshaft phaser retaining bolt (1) finger tight.
   Fig 5: Timing Chain Guide

   Courtesy of CHRYSLER LLC
6. If removed, install the timing chain guide (1) and tighten the bolts (2) to 11 N.m (8 ft. lbs.).
   Fig 6: Timing Chain Tensioner Pin

   Courtesy of CHRYSLER LLC
7. If removed, install the timing chain tensioner (2) and tighten the bolts (3) to 11 N.m (8 ft. lbs.).
8. Remove the tensioner pin 8514 (1).
   Fig 7: Aligning Timing Marks With Timing Chain Sprockets

   Courtesy of CHRYSLER LLC
9. Rotate the crankshaft two revolutions and verify the alignment of the timing marks (1, 2). If the timing marks do not line up, remove the camshaft sprocket and realign.
   Fig 8: Camshaft Phaser Retaining Bolt

   Courtesy of CHRYSLER LLC
10. Tighten the camshaft phaser bolt (1) to 85 N.m (63 ft. lbs.).

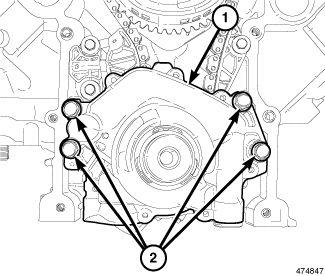

    Fig 9: Oil Pump Retaining Bolts

    Courtesy of CHRYSLER LLC
11. Position the oil pump (1) onto the crankshaft and install the oil pump retaining bolts (2) finger tight.

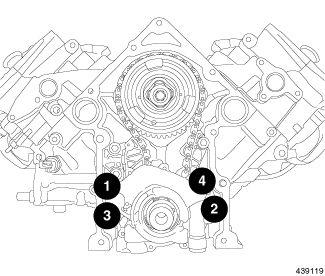

    Fig 10: Oil Pump Retaining Bolt Tightening Sequence

    Courtesy of CHRYSLER LLC
12. Using the sequence shown in illustration, tighten the oil pump retaining bolts to 28 N.m (21 ft. lbs.).
    Fig 11: FRONT COVER SLIDE BUSHINGS

    Courtesy of CHRYSLER LLC
13. Verify the slide bushings (1) are installed in the timing chain cover.
14. Install the timing chain cover. See Engine/Valve Timing/COVER(S), Engine Timing - Installation .
15. Fill the engine with oil.
16. Fill the cooling system. Refer to Cooling - Standard Procedure .
17. Connect the negative battery cable.
18. Start the engine and check for leaks.
