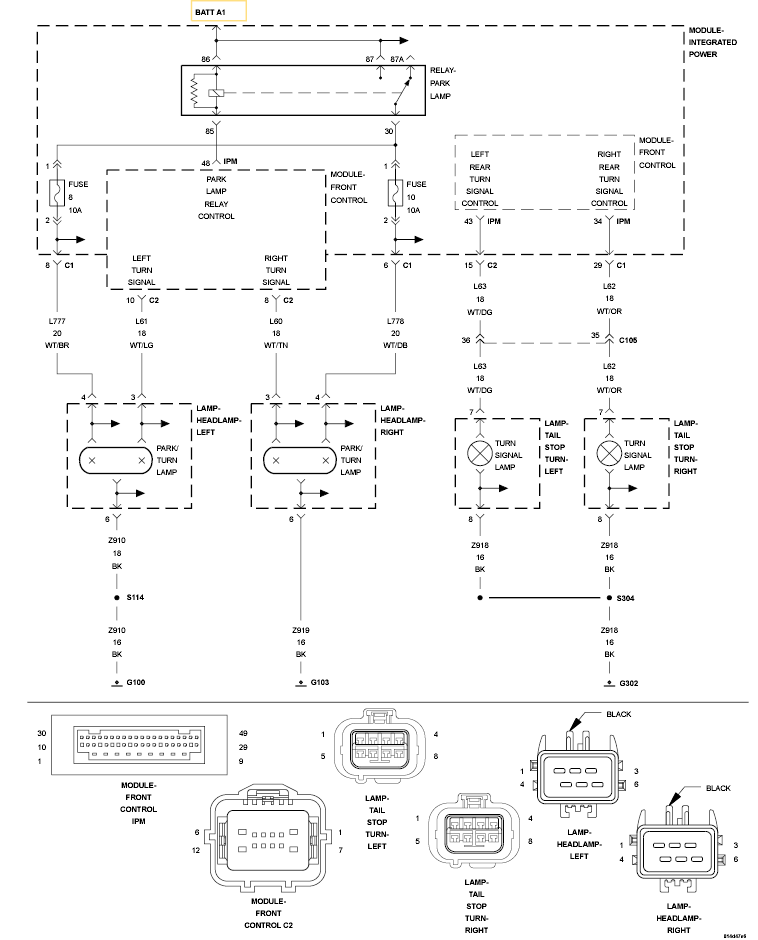

Home › Jeep › 2010 › Commander Limited, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Front Control Module (FCM) - Electrical Diagnostics › DTC Troubleshooting › B1647-Rear Right Turn Control Circuit Low › Circuit Schematic
