Connector End Views & Electrical Component Locations: S114
Harness-Family: HDLP_Dash
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

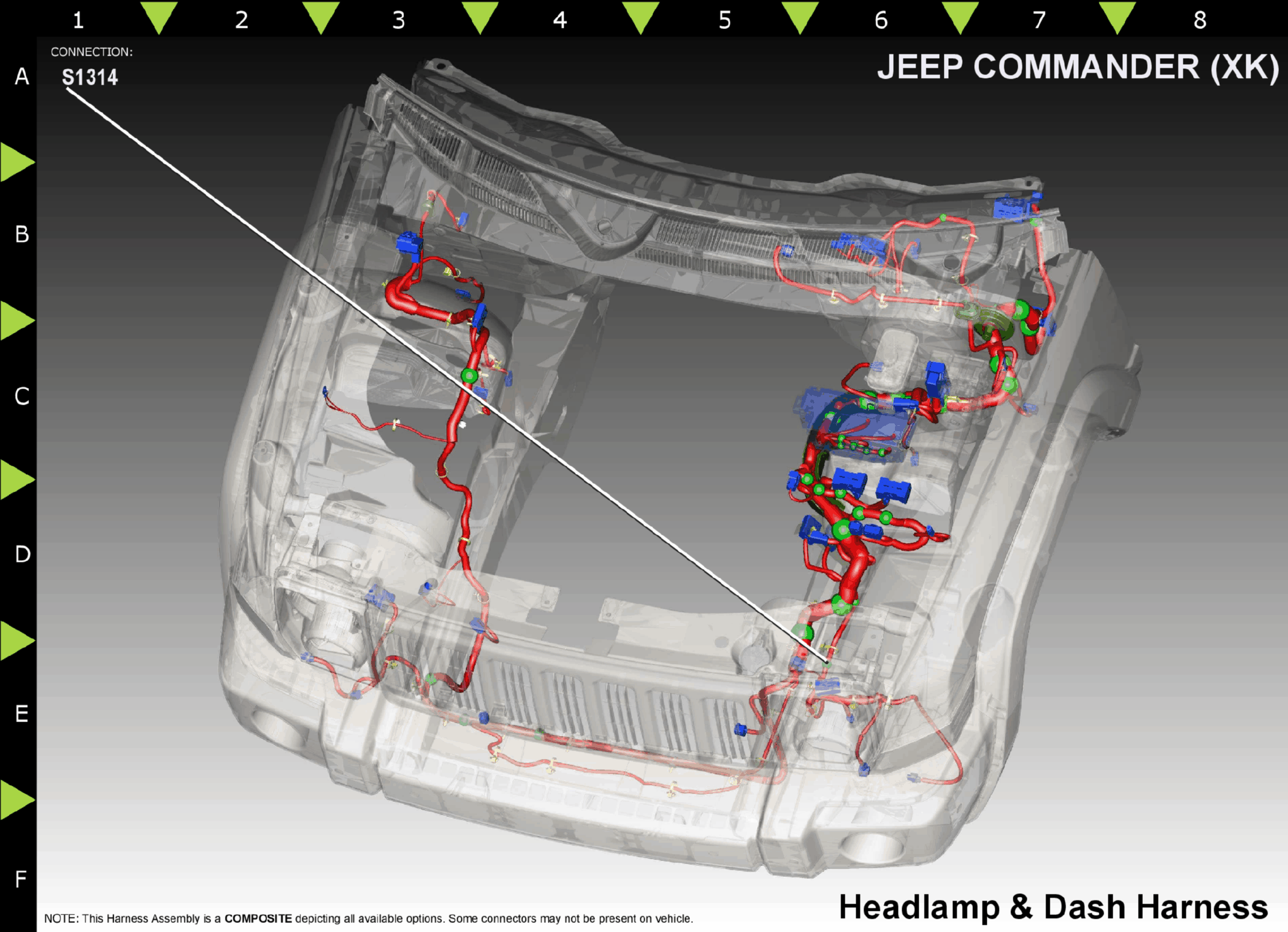

Connector No: S1314
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z910 | BK | 16 | GROUND | N/A | ||
| 2 | Z910 | BK | 20 | GROUND | N/A | ||
| 3 | Z910 | BK | 20 | GROUND | N/A | ||
| 4 | Z910 | BK | 16 | GROUND | N/A | ||
| 5 | Z910 | BK | 16 | GROUND | N/A | ||
|
|||||||
