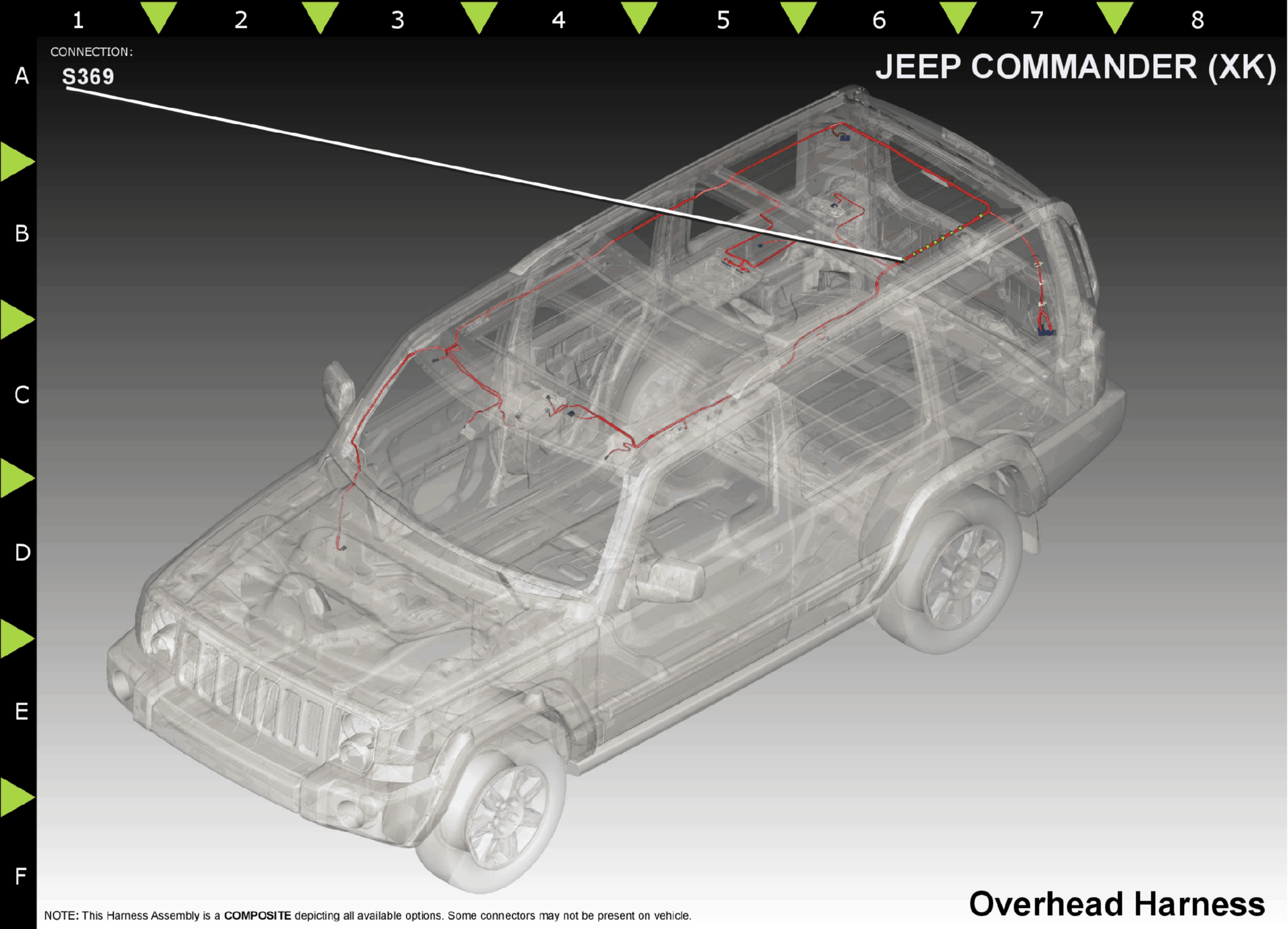

Connector End Views & Electrical Component Locations: S369

Harness-Family: Overhead

Color: NA

Gender: FEMALE

Part Number: TBD

Part Description: Not Available

Connector No: S369

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D55	WT/OR	20	CAN B (+)	N/A
2	D55	WT/OR	20	CAN B (+)	N/A
3	D55	WT/OR	20	CAN B (+)	N/A
4	D55	WT/OR	20	CAN B (+)	N/A
6	D55	BR/DB	20	CAN B (+)	N/A
(1) Pins not listed are not used for this connector
