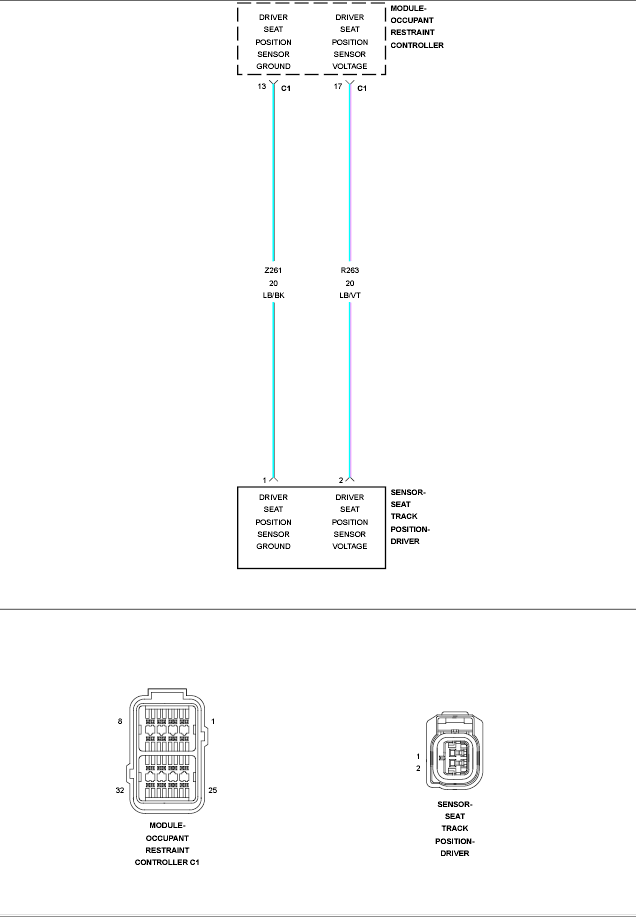

Home › Jeep › 2010 › Commander Limited, 4WD › Repair and Diagnosis › Restraints › Restraints Control Systems › Air Bag Restraint System - Electrical Diagnostics › DTC Troubleshooting › B1B8F-Driver Seat Track Position Sensor Circuit Open › Circuit Schematic
