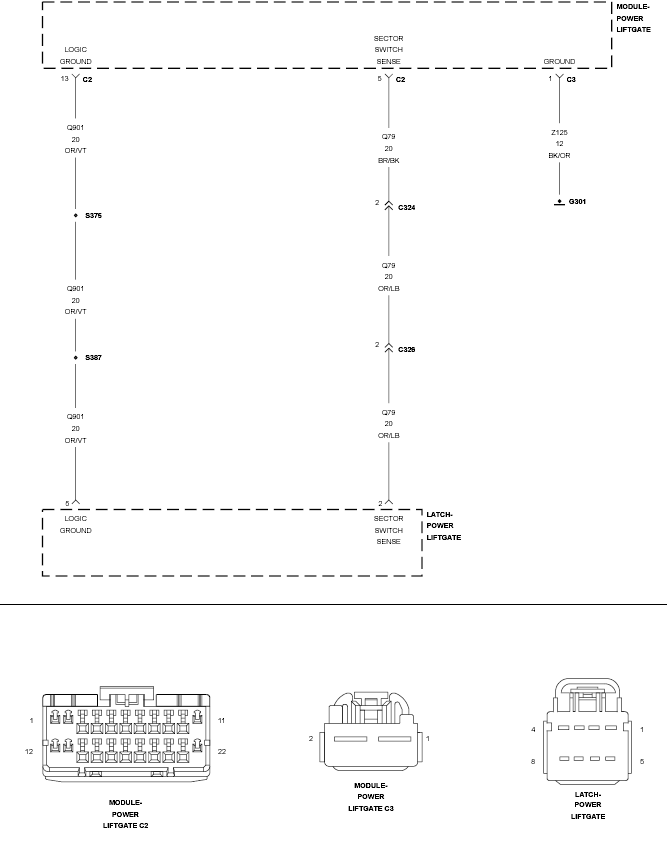

Home › Jeep › 2010 › Commander Limited, RWD › Repair and Diagnosis › Body & Frame › Door Locks › Power Liftgate Module (PLGM) - Electrical Diagnostics › DTC Troubleshooting › B1977-Power Liftgate Open Direction - Sector Switch Performance › Circuit Schematic
