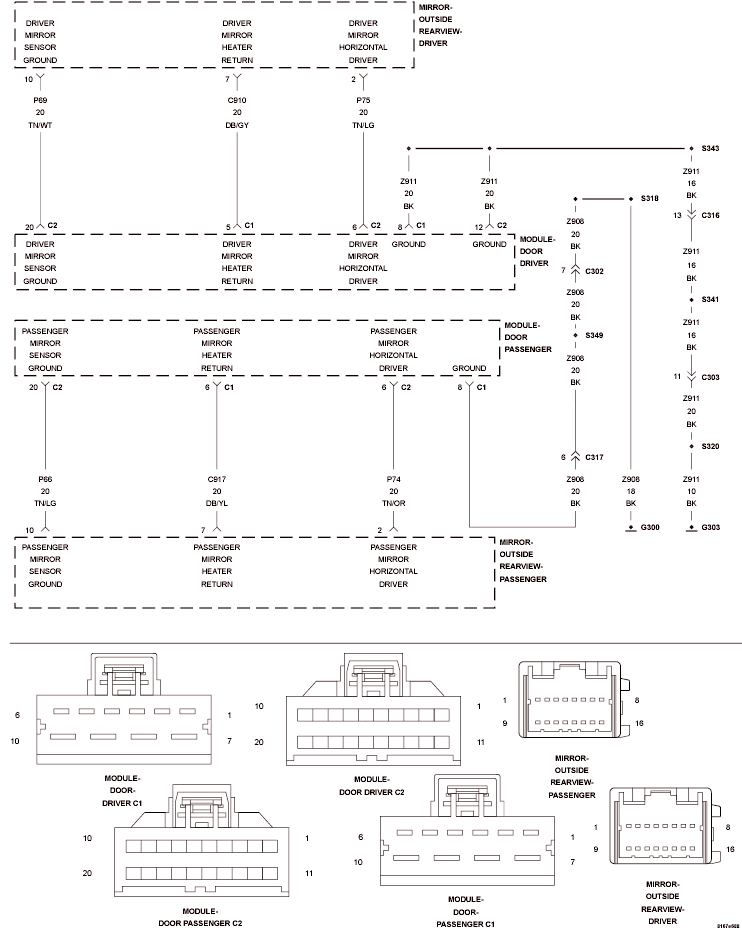

Home › Jeep › 2010 › Commander Limited, RWD › Repair and Diagnosis › Body & Frame › Windows › Driver Door Module (DDM) - Electrical Diagnostics › DTC Troubleshooting › B1D24-Driver Mirror Horizontal Motor Control Circuit High › Circuit Schematic
