3.7L Gas/3.0L Diesel Vehicles

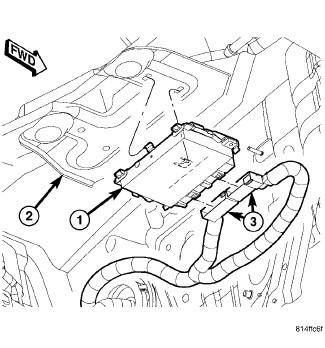

Fig 1: Transmission Control Module Location - 3.7L Vehicles

Courtesy of CHRYSLER LLC

1 - TRANSMISSION CONTROL MODULE

2 - DASH PANEL

3 - WIRING CONNECTORS

Connect the wiring connectors (3) to the transmission control module (1).
Install the module to the dash panel (2) or the mounting bracket.
Fold the dash panel silencer pad back over the module and retain the pad in place with suitable adhesive tape.
