Litens Decoupler

Disconnect negative battery cable.
Remove generator and accessory drive belt. Refer to Generator Removal .

Fig 1: 8433A TOOL AND LITENS DECOUPLER
Courtesy of CHRYSLER LLC
Position Special Tool 8433A into decoupler. Align to hex end of generator shaft.

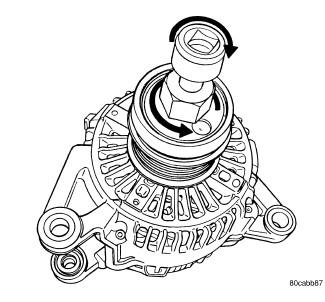

Fig 2: DECOUPLER REMOVAL (LITENS)
Courtesy of CHRYSLER LLC
The generator shaft uses conventional right-hand threads to attach decoupler. To break decoupler loose from generator threads, rotate end of tool clockwise .
After breaking loose with tool, unthread decoupler by hand from generator.
