Power Distribution Center (PDC) Layout And Connector Identification
Power Distribution Center (PDC) Layout And Connector Identification

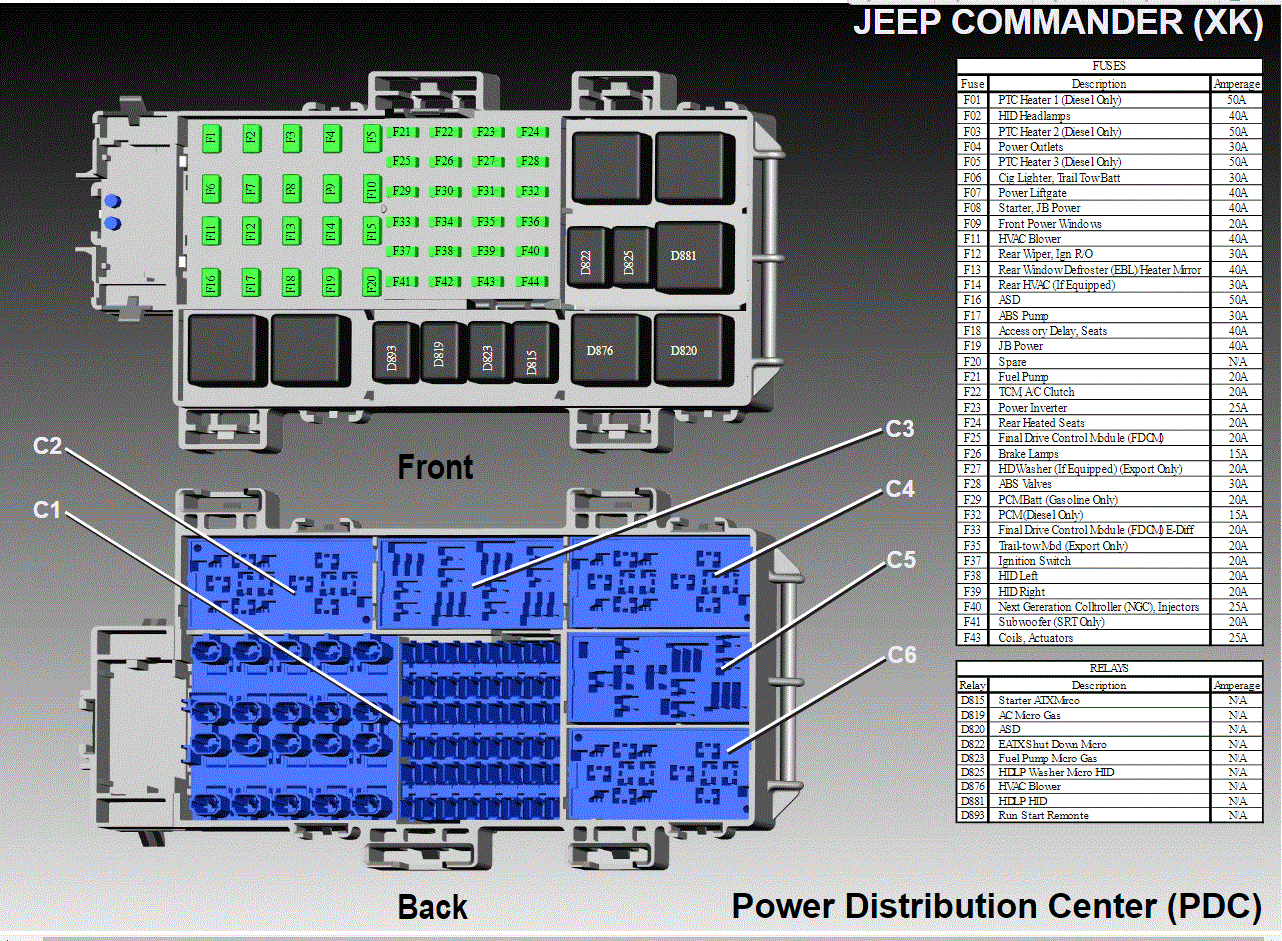

Fig 1: PDC Layout And Connector Identification
Courtesy of CHRYSLER
Courtesy of CHRYSLER
