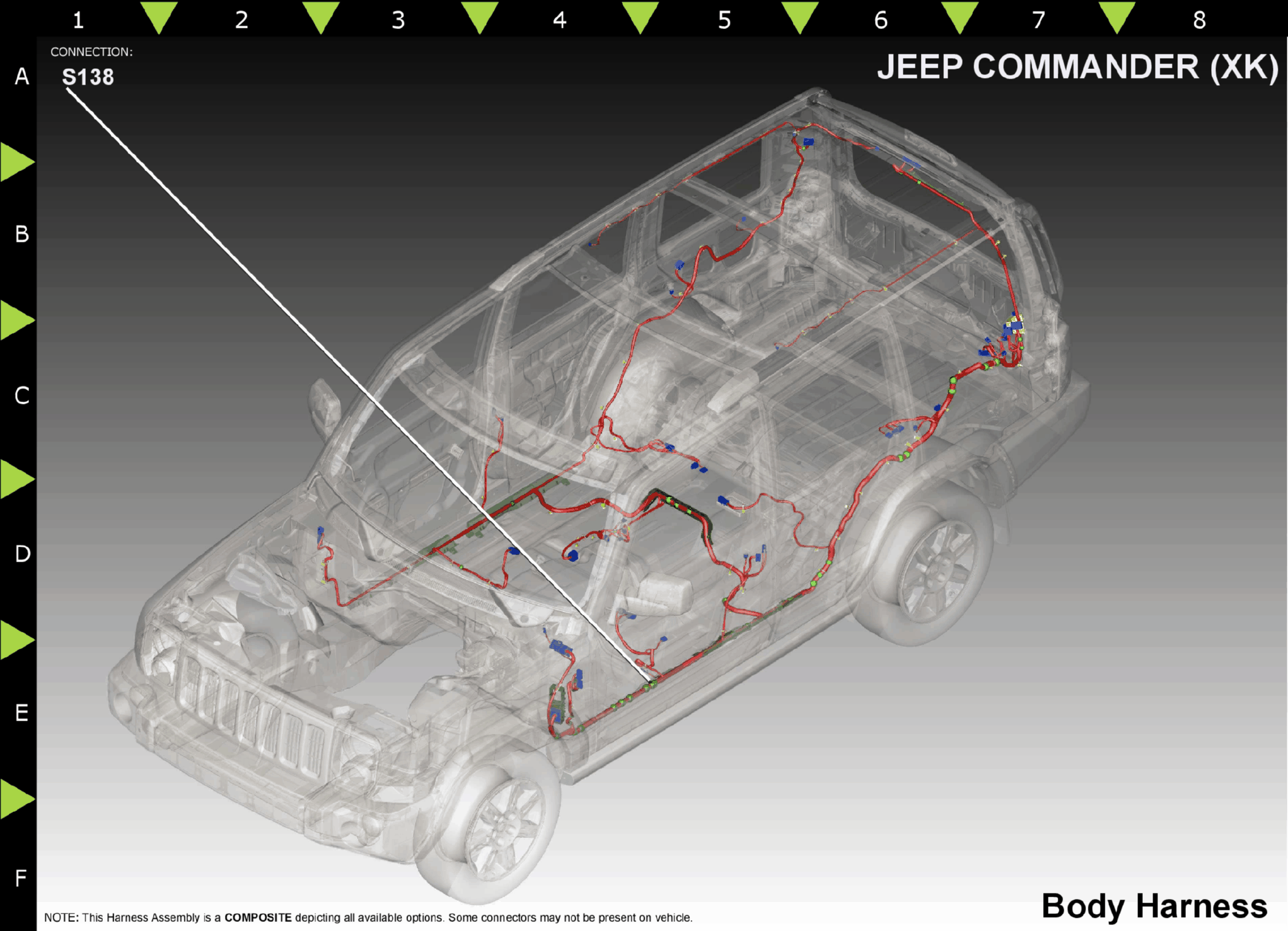

Connector End Views & Electrical Component Locations: S198
Harness-Family: Body
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S138
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z917 | BK/WT | 14 | GROUND | N/A | ||
| 1 | C70 | DB/YL | 12 | BLOWER MOTOR HIGH DRIVER | N/A | ||
| 2 | Z917 | BK/WT | 14 | GROUND | N/A | ||
| 2 | C229 | DB | 12 | FRONT BLOWER CONTROL | N/A | ||
| 3 | Z917 | BK/WT | 14 | GROUND | N/A | ||
| 3 | C75 | DB/GY | 12 | FRONT BLOWER HIGH SPEED | N/A | ||
|
|||||||
