Connector End Views & Electrical Component Locations: S216
Harness-Family: IP
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

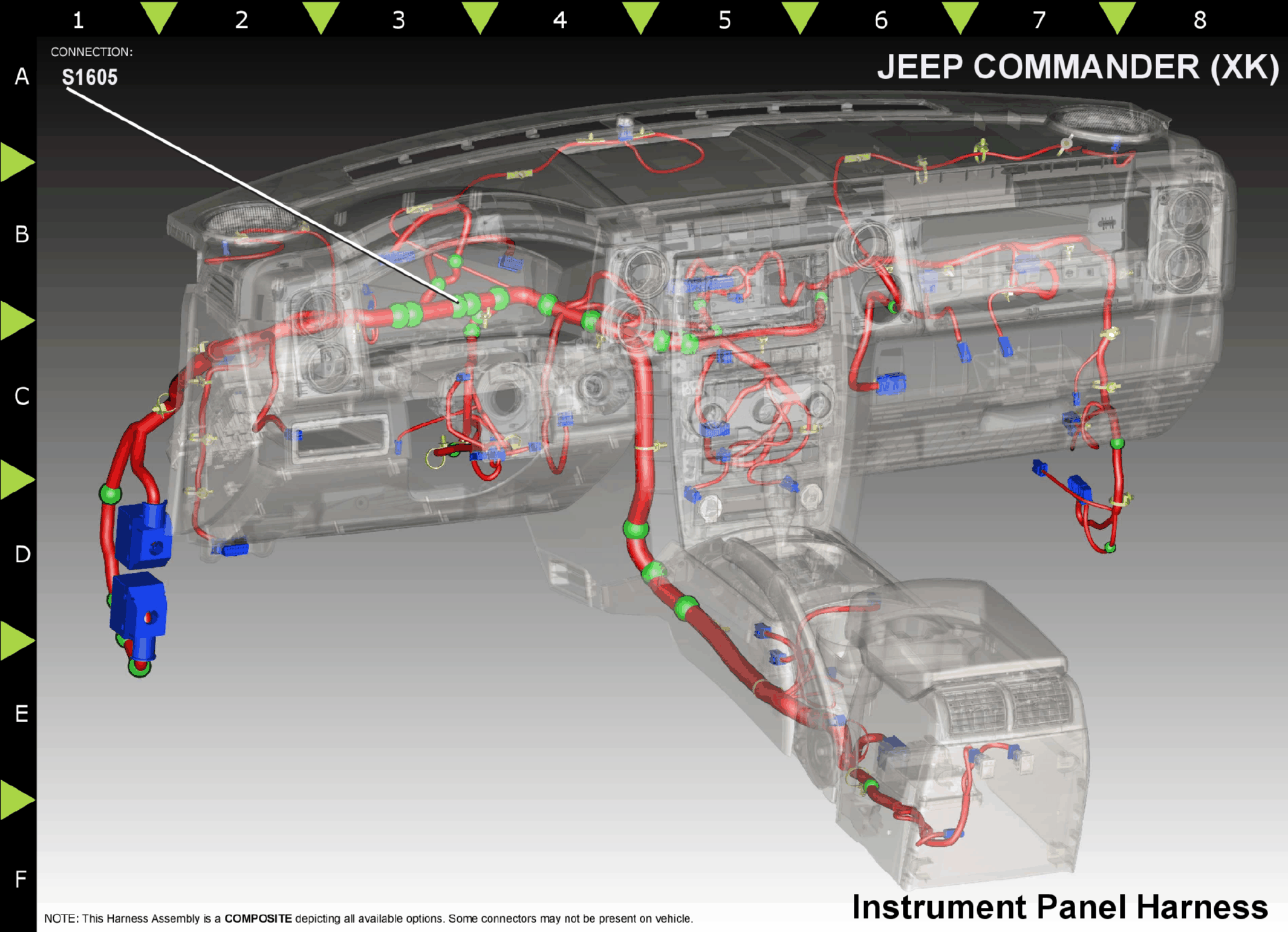

Connector No: S1605
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | D54 | WT | 20 | CAN B (-) | N/A | ||
| 2 | D54 | WT | 20 | CAN B (-) | N/A | ||
| 3 | D54 | WT | 20 | CAN B (-) | N/A | ||
| 4 | D54 | WT | 20 | CAN B (-) | N/A | ||
|
|||||||
