Connector End Views & Electrical Component Locations: S316
Harness-Family: Body
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

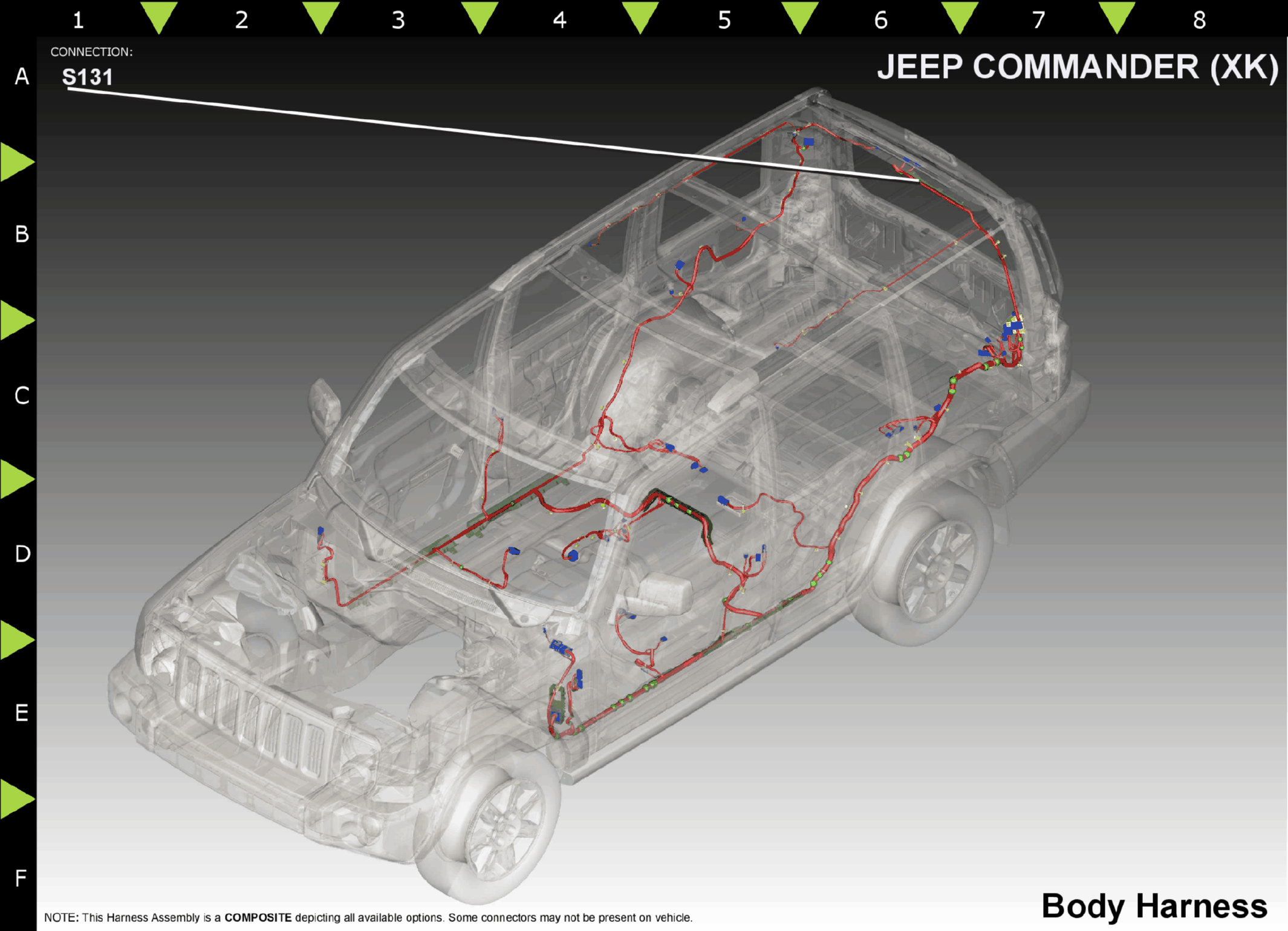

Connector No: S131
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | X972 | NA | 18 | CAMERA SHIELD | N/A | ||
| 2 | X972 | DG/WT | 18 | CAMERA SHIELD | N/A | ||
|
|||||||
