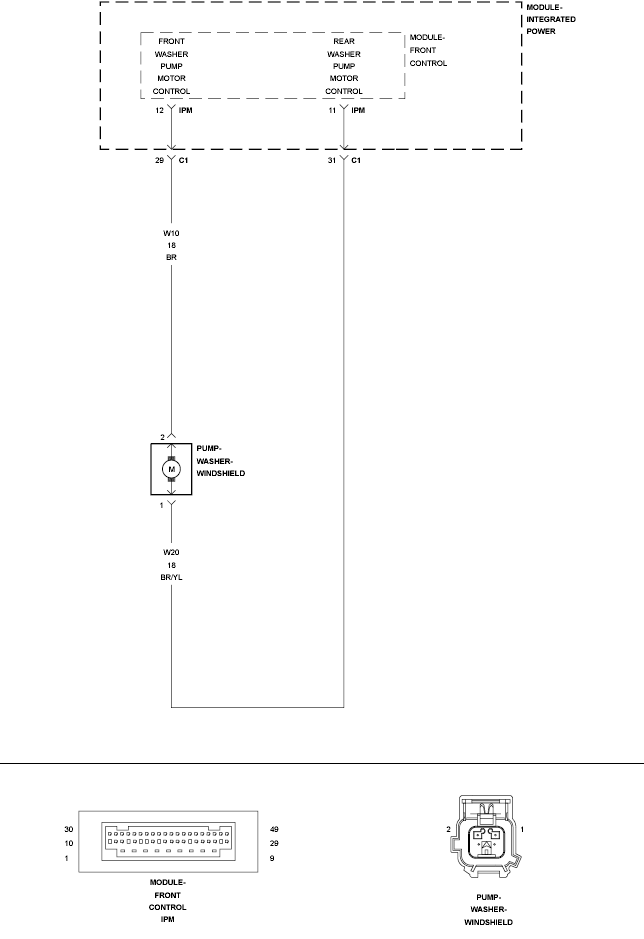

Home › Jeep › 2010 › Commander Limited, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Front Control Module (FCM) - Electrical Diagnostics › DTC Troubleshooting › B2320-Front/Rear Washer Motor Control Circuit High › Circuit Schematic
