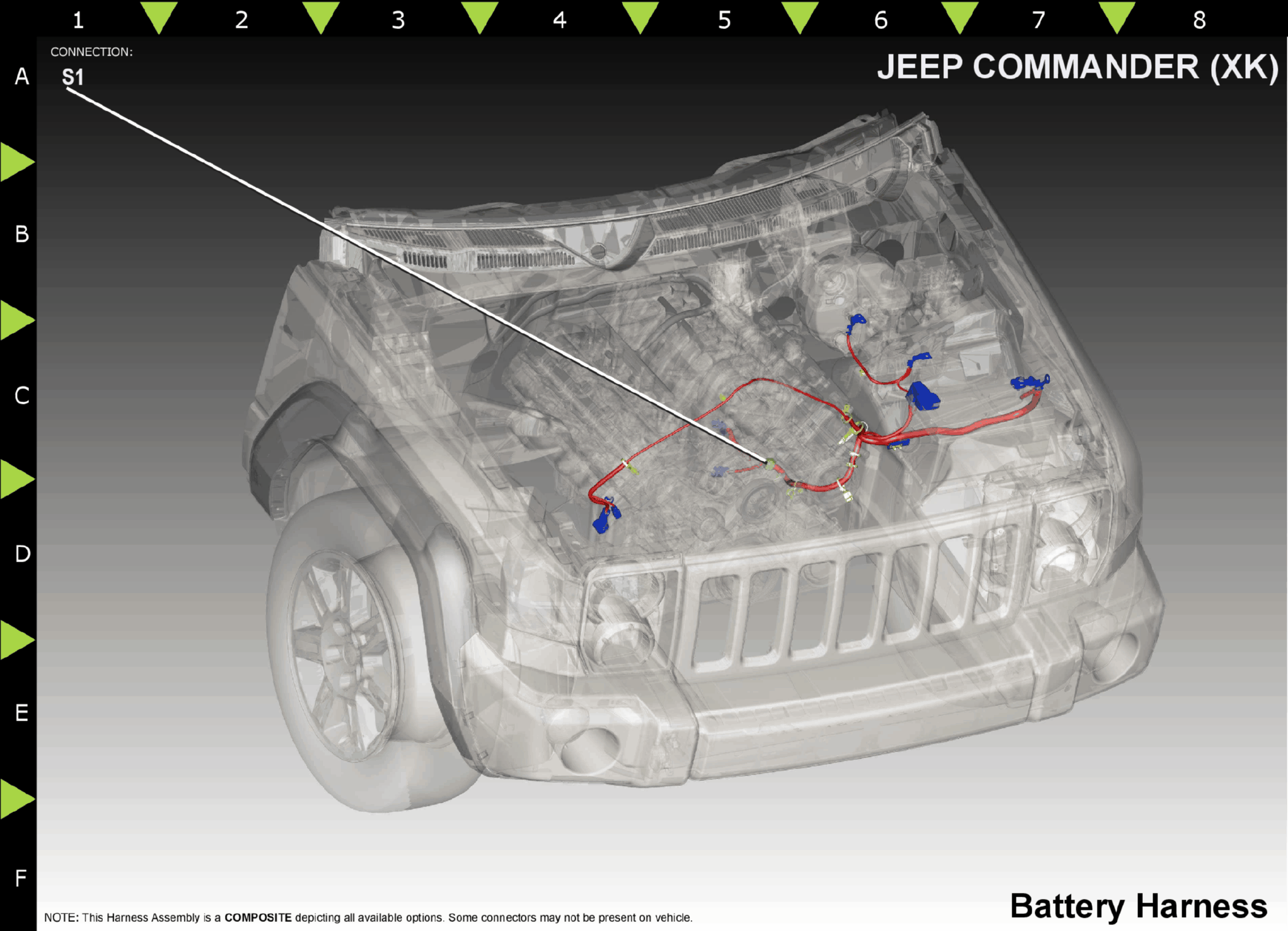

Connector End Views & Electrical Component Locations: S101
Harness-Family: Battery
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S1
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | A11 | BR/RD | 06 | B(+) | N/A | ||
| 2 | A11 | BR/RD | 06 | B(+) | N/A | ||
|
|||||||
