Connector End Views & Electrical Component Locations: S339
Harness-Family: Body_Under
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

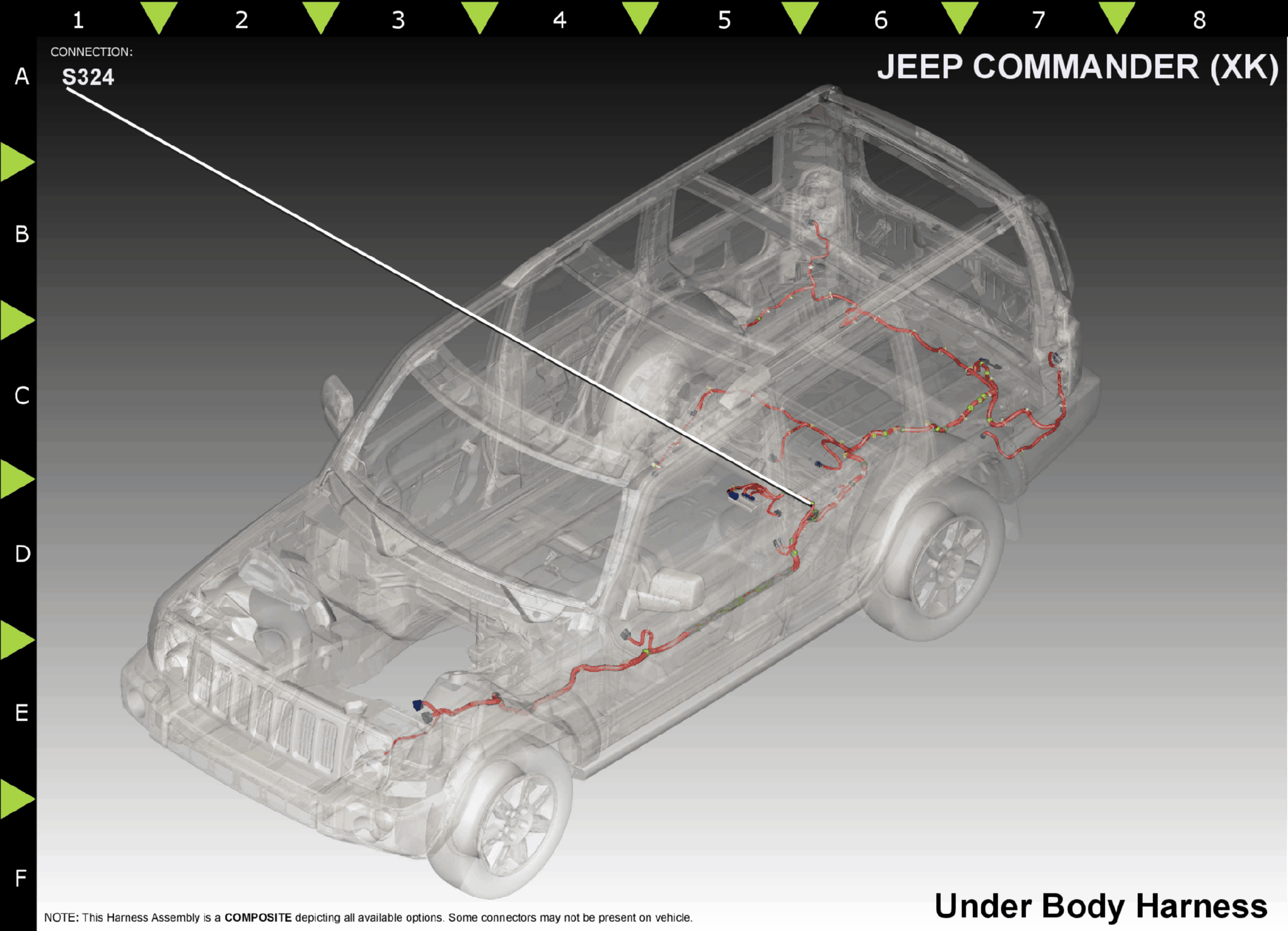

Connector No: S324
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | T316 | YL/GY | 14 | SHIFT MOTOR CONTROL B | N/A | ||
| 2 | T316 | YL/GY | 16 | SHIFT MOTOR CONTROL B | N/A | ||
|
|||||||
