FAN, Cooling: Installation: 3.7L/4.7L
- Position fan assembly on shroud (4).

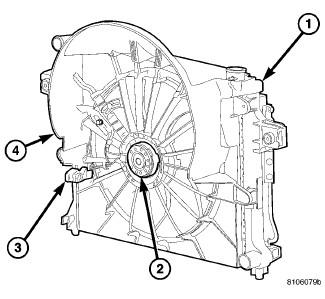

1 - RADIATOR 2 - ELECTRIC COOLING FAN MOTOR 3 - COOLING FAN ELECTRICAL CONNECTOR 4 - FAN SHROUD - Install fan to fan shroud (4) mounting nuts. Tighten to 6 N.m (50 in. lbs.).
- Position fan and shroud assembly in vehicle.
- Install shroud (4) mounting bolts. Tighten to 6 N.m (50 in. lbs.)
- Connect electric fan electrical connector (3).
- Start engine and check fan operation.
