3.7L Engine

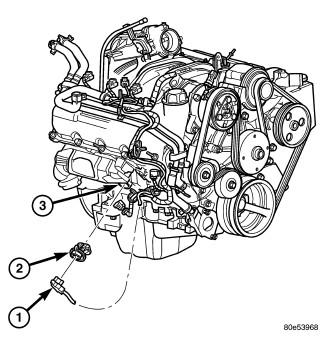

| 1 - POWER CORD |
| 2 - BLOCK HEATER |
| 3 - CORE HOLE |
- Drain cooling system. See Cooling - Standard Procedure .
- Raise vehicle on hoist.
- Detach power cord plug (1) from heater (2).
- Loosen screw in center of heater. Remove heater assembly (2).
| 1 - POWER CORD |
| 2 - BLOCK HEATER |
| 3 - CORE HOLE |
