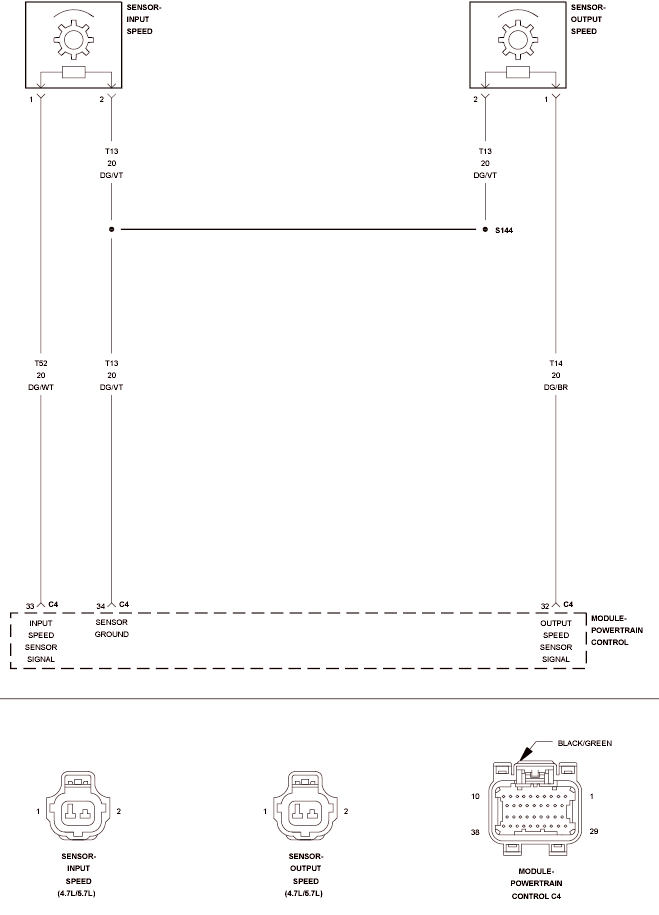

Home › Jeep › 2010 › Commander Limited, RWD › Repair and Diagnosis › Transmission › Automatic Trans › Powertrain Control Module (Pcm) - Electrical Diagnostics - 545RFE Automatic Transmission › DTC Troubleshooting › P0716-Input Speed Sensor 1 Circuit Performance › Circuit Schematic
