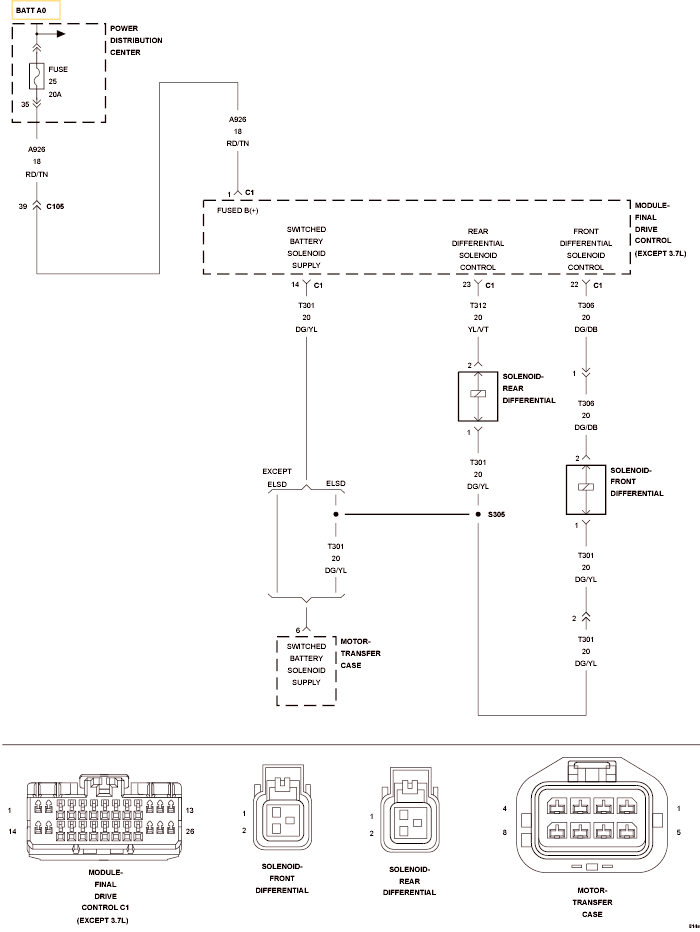

Home › Jeep › 2010 › Commander Limited, RWD › Repair and Diagnosis › Transmission › Transfer Case › Final Drive Control Module (FDCM) - Electrical Diagnostics › DTC Troubleshooting › C1420-Rear Differential Control Circuit Current Performance › Circuit Schematic
