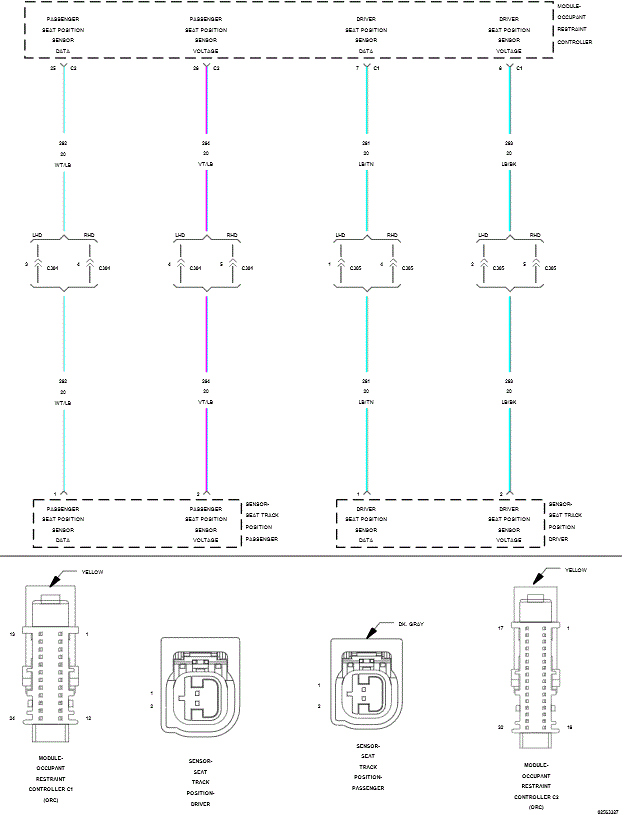

Home › Jeep › 2010 › Compass Limited, EDG, Standard › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1B2A To B1C13 › B1B8F-Driver Seat Track Position Sensor Circuit Open › Circuit Schematic
