Shift Interlock System: Notes

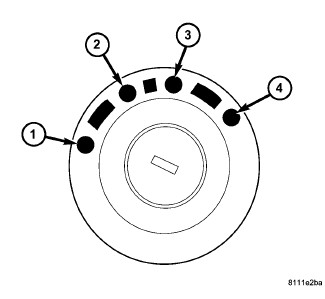

Fig 1: Ignition Key/Switch Positions

Courtesy of CHRYSLER LLC

1 - LOCK

2 - ACC

3 - ON

4 - START

If the shifter cannot be shifted out of Park or can be shifted out of Park without depressing the brake pedal, follow diagnostics procedure below.
