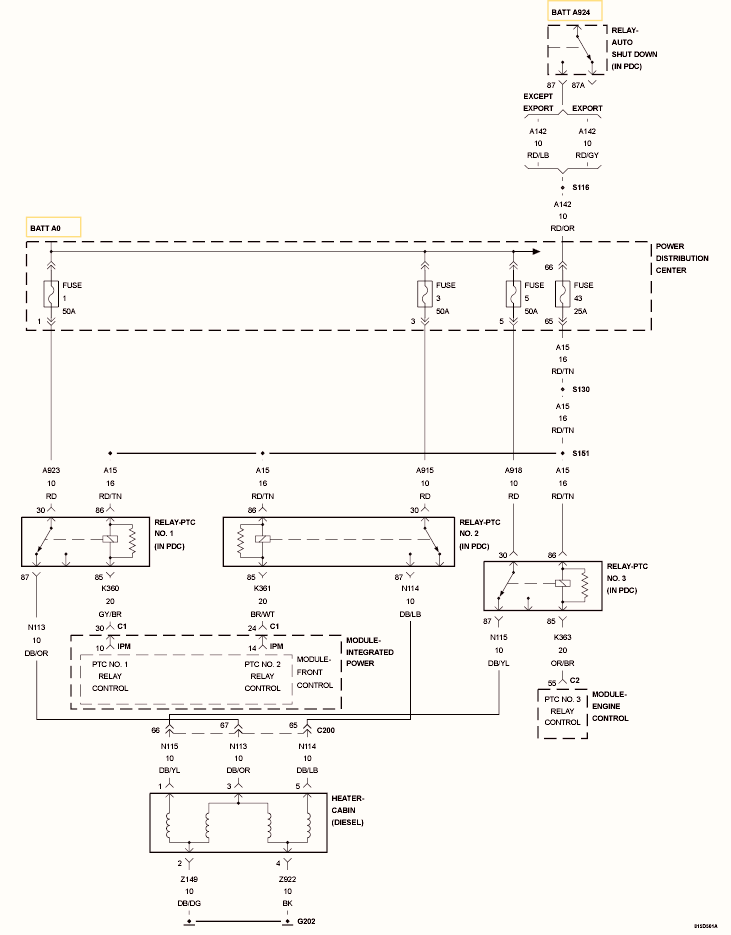

Home › Jeep › 2010 › Grand Cherokee SRT-8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › (Front Control Module (FCM) - Electrical Diagnostics) › DTC Troubleshooting › B10B5-Cabin Heater 1 Control Circuit High › Circuit Schematic
