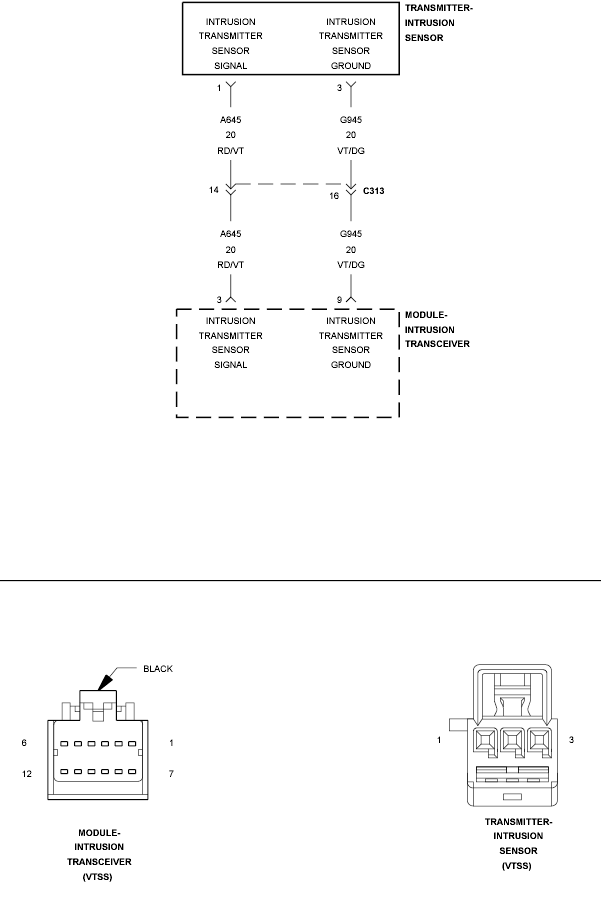

Home › Jeep › 2010 › Liberty Renegade, Part Time › Repair and Diagnosis › Body & Frame › Door Locks › Intrusion Transceiver Module (ITM) - Electrical Diagnostics › DTC Troubleshooting › B1A41-Security Transmitter Sensor Circuit Open › Circuit Schematic
