SWITCH, Power Window: Installation: Installation: Front

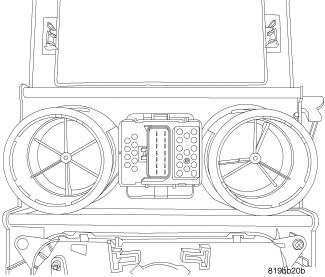

Fig 1: Identifying Front Power Window Switch

Courtesy of CHRYSLER LLC

1. Connect electrical harness connector to switch.
2. Align switch and press into position.
3. Install the center bezel.
4. Connect battery negative cable.
