INSULATOR, Engine Mount, Front: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

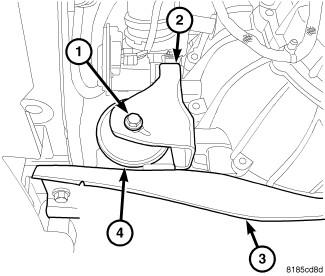

Fig 1: Front Mount Through Bolt
GC0084963Courtesy of CHRYSLER LLC
  1. Position mount (4) and torque bolts to 47 N.m (35 ft. lbs.).
  2. Install fore aft member (3) and torque bolts to 100 N.m (74 ft. lbs.).
  3. Install mount through bolt (1) and torque to 47 N.m (35 ft. lbs.).
  4. Lower vehicle.
