HEATER, Engine Block: Installation: Installation

  1. Thoroughly clean bore hole.
  2. Insert block heater assembly into bore.
  3. Install retaining clip.
  4. Connect power cord to block heater.

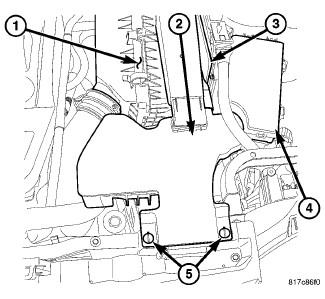

    Fig 1: Air Cleaner Inlet
    GC0098469Courtesy of CHRYSLER LLC
  5. Install air intake inlet.
  6. Install engine cover.
