Section 5 (Clutch System): Description: Description: Notes
WARNING: This page is about a different variant/trim than selected.

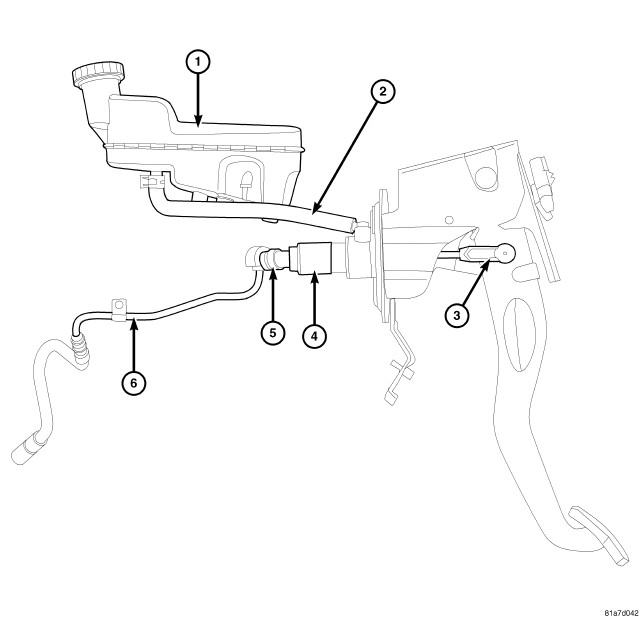

Fig 1: Clutch Master Cylinder, Interconnecting Fluid Line, Brake Master Cylinder Reservoir & Clutch Pedal Pushrod
The typical clutch hydraulic system consists of a clutch master cylinder (4) Concentric Slave Cylinder (CSC) and an interconnecting fluid line (2). Clutch hydraulic fluid is supplied by the brake system via the brake master cylinder reservoir (1). The clutch pedal pushrod (3) is non-adjustable.
