HEATER, Engine Block: Removal: Removal

Fig 1: Air Cleaner Inlet

Courtesy of CHRYSLER LLC

1. Remove engine cover.
2. Remove air cleaner inlet.

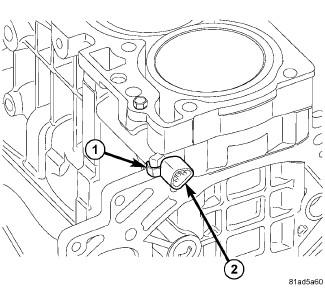

   Fig 2: Block Heater 2.0/2.4L Engine

   Courtesy of CHRYSLER LLC

   1 - RETAINING CLIP

   2 - BLOCK HEATER

3. Detach power cord plug from heater.
4. Remove retaining clip (1). Remove block heater assembly (2).
