U0161-Lost Communication With Compass Module
›
Notes
U0161-Lost Communication With Compass Module: Notes

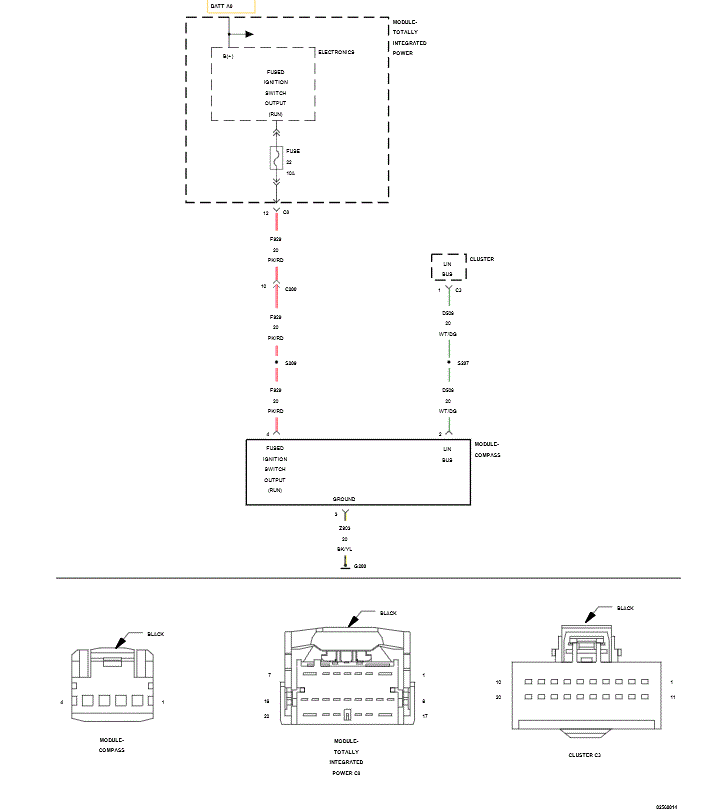

Fig 1: Compass Module Wiring Diagram
Courtesy of CHRYSLER LLC
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.
Courtesy of CHRYSLER LLC
