No Start After Powertrain Control Module (Pcm) Replacement And/Or Reprogramming (18-058-19 REV. B)

WARNING: This page is about the Compass Base, 2.0 A, Automatic CVT, which is a different variant/trim than selected.

Publication date: 2019-12-19
Reference number: 18-058-19 REV. B
Supersedes refnos: 18-058-19, 18-058-19 REV. A

NO START AFTER POWERTRAIN CONTROL MODULE (PCM) REPLACEMENT AND/OR REPROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): 18-058-19 REV. B, Date of Issue: December 19, 2019

CHRYSLER:	2011-2016 Jeep Compass/Patriot (MK), Dodge Journey (JC), 2011-2012 Dodge Caliber (PM); 2011-2014 Chrysler 200 Dodge Avenger (JS)
GROUP:	18 - Vehicle Performance

Superceded Bulletin(s): 18-058-19 REV. A, Date of Issue: November 22, 2019

NOTE: This bulletin supersedes Service Bulletin 18-058-19 REV. A, dated November 22, 2019, which should be removed from your files. All revisions are highlighted with **asterisks** and include additional model years.

MODELS

MODELS CHART

2011 - 2016	(MK)	Jeep Compass/Patriot
2011 - 2016	(JC)	Dodge Journey
2011 - 2012	(PM)	Dodge Caliber
2011 - 2014	(JS)	Chrysler 200 Dodge Avenger

NOTE: This bulletin applies to vehicles within the following markets/countries: North America, EMEA, APAC and LATAM.

NOTE: This bulletin applies to vehicles equipped with one of the following engines:

2.0L 4 CYL DOHC 16V Dual V.V.T (Sales Code ECN).
2.4L 4 CYL DOHC 16V Dual V.V.T (Sales Code ED3).

DISCUSSION

CAUTION: Updating the PCM software or replacing the PCM on a vehicle with an incorrect replacement engine will result in a no-start condition which can not be undone.

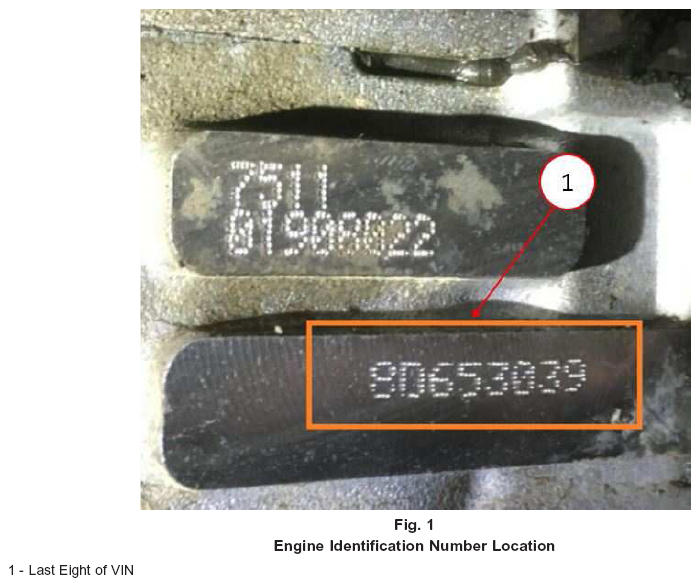

If the engine has been replaced (numbers do not match) do not perform a PCM flash or replace the PCM, unless it is a certified MOPAR engine built specifically for this vehicle application. PCM update/replacement can not be completed on a vehicle with an incorrect replacement engine until the vehicle is returned to the original equipment configuration. Confirm that the last eight digits of the Vehicle Identification Number (VIN) matches the engine identification number before proceeding with PCM software updates or PCM replacement. The engine identification number (last eight digits of the VIN) is stamped on the bottom rear of the engine near the transmission (Fig. 1 ).

POLICY

Information Only
