P1705-Input Speed Sensor 2 OVERSPEED: Notes

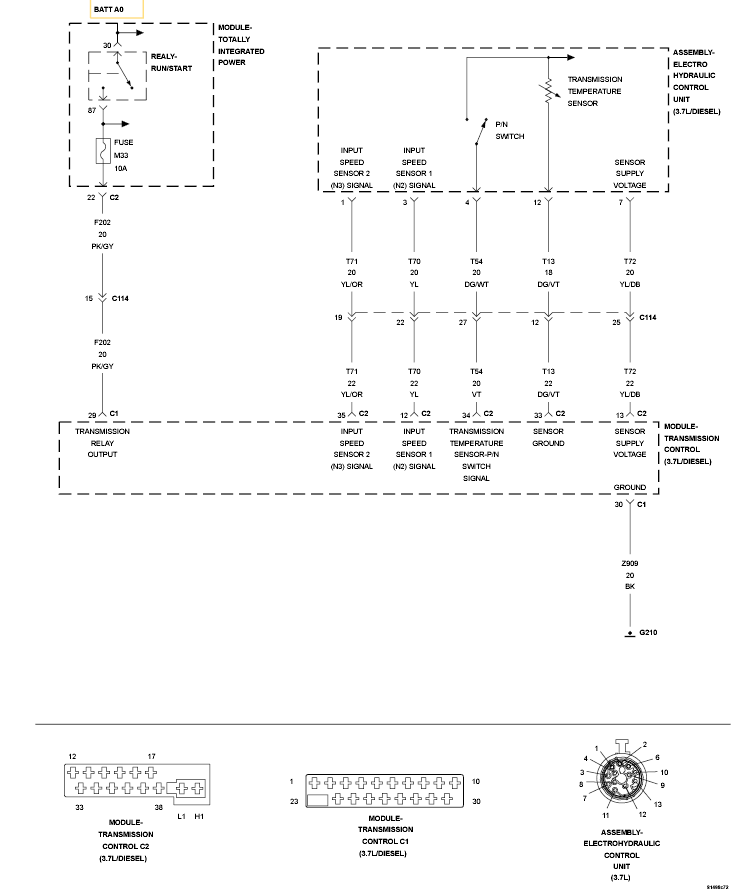

Fig 1: Electrohydraulic Control Unit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
