B1C14-Driver Active Headrest Control Circuit Open: Notes

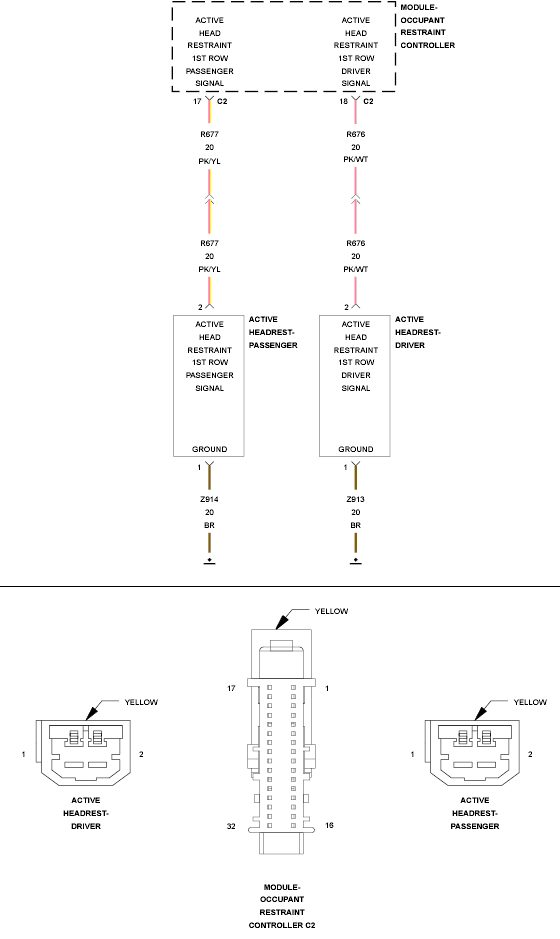

Fig 1: Driver/Passenger Active Headrest Control Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
