P0711-Transmission Temperature Sensor Performance: Notes

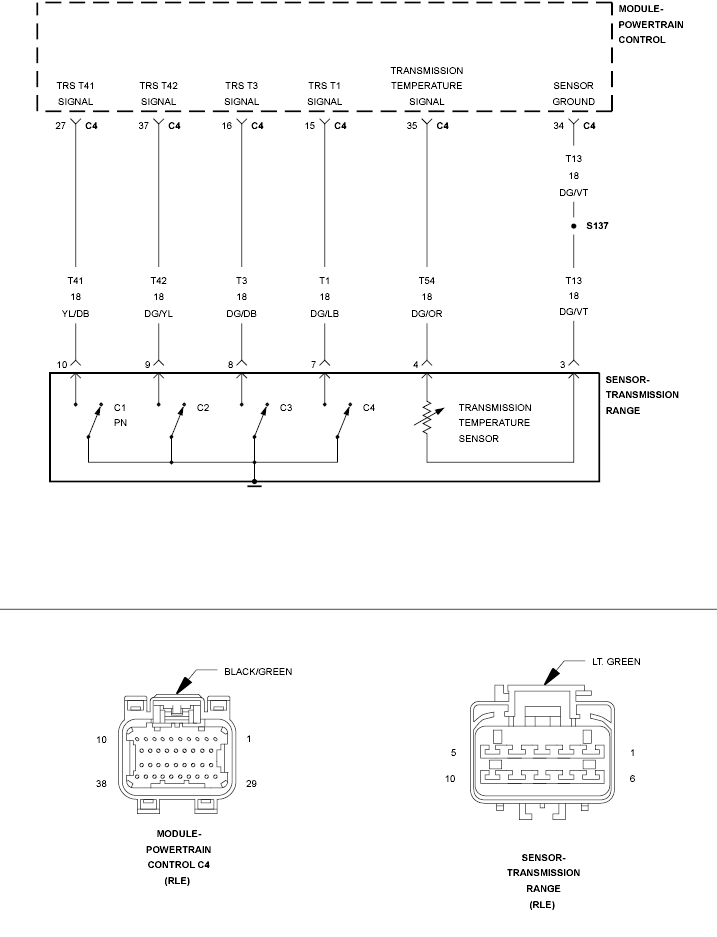

Fig 1: Transmission Range Sensor Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
