P0882-TCM Power Input Low: Notes

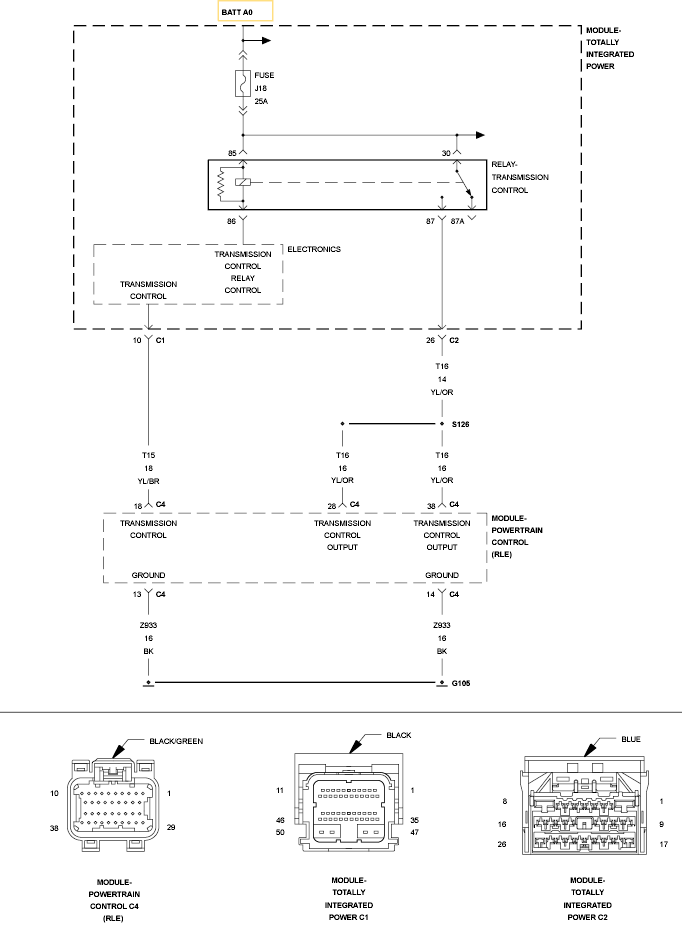

Fig 1: Transmission Control Output Wiring Diagram
GC0102077Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
