P0933-Line Pressure Sensor Circuit Performance: Notes

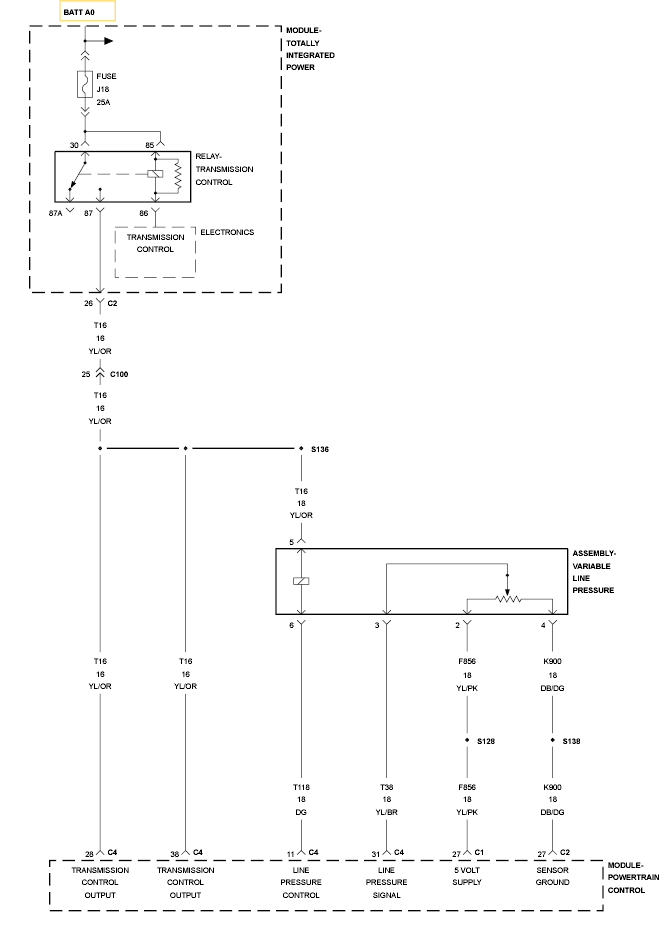

Fig 1: Line Pressure Sensor Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
