P1794-Speed Sensor Ground Error: Notes

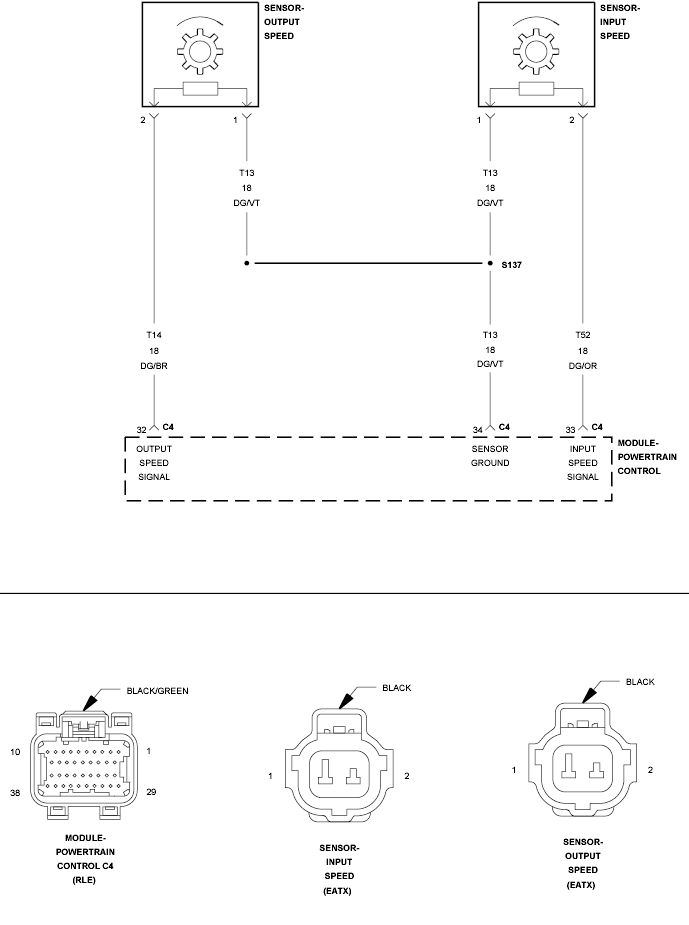

Fig 1: Input/Output Speed Sensors Wiring Diagram
GC0102085Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
