Valve Body: Assembly: Assembly

NOTE:

If the valve body assembly is being reconditioned or replaced, it is necessary to perform the Quick Learn Procedure using the scan tool. Refer to MODULE, Transmission Control, Standard Procedure .

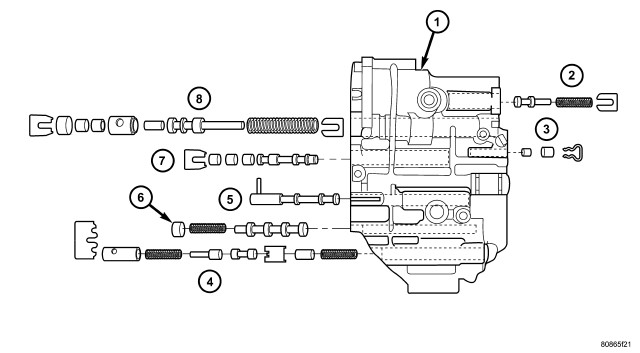

Fig 1: Locating Springs & Valves

Courtesy of CHRYSLER LLC

1 - VALVE BODY

2 - T/C REGULATOR VALVE

3 - L/R SWITCH VALVE

4 - CONVERTER CLUTCH CONTROL VALVE

5 - MANUAL VALVE

6 - CONVERTER CLUTCH SWITCH VALVE

7 - SOLENOID SWITCH VALVE

8 - REGULATOR VALVE

Install all valves and springs as shown in illustration.

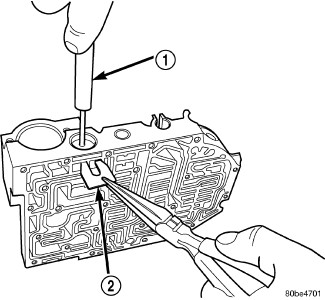

Fig 2: Installing Regulator Valve Spring Retainer
Courtesy of CHRYSLER LLC

1 - TOOL 6302

2 - RETAINER
Using Remover / Installer l regulator valve spring retainer (2).

Fig 3: Installing Dual Retainer Plate
Courtesy of CHRYSLER LLC

1 - REMOVER/INSTALLER 6301

2 - RETAINER
Install dual retainer plate (2) using Remover/Installer (special tool #6301, Remover/Installer) (1).

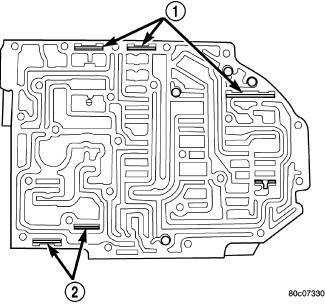

Fig 4: Identifying Retainers Positions
Courtesy of CHRYSLER LLC

1 - RETAINER

2 - RETAINER

Verify that all retainers (1, 2) are installed as shown in illustration. Retainers should be flush or below valve body surface.

Fig 5: 2/4 Accumulator Assembly

Courtesy of CHRYSLER LLC

1 - VALVE BODY

2 - RETAINER PLATE

3 - DETENT SPRING

4 - RETURN SPRINGS

5 - PISTON

Install 2/4 Accumulator components (1-5) as shown in illustration. Torque 2/4 Accumulator retainer plate to 5 N.m (45 in. lbs.).

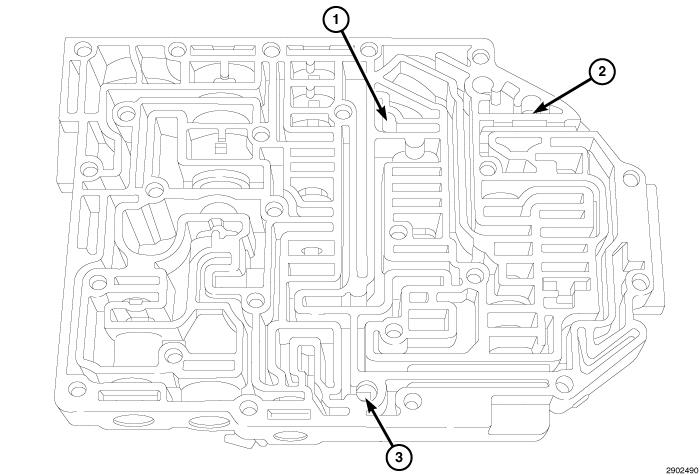

Fig 6: Ball Check Location

Courtesy of CHRYSLER LLC

1 - (#4) BALL CHECK LOCATION

2- (#5) BALL CHECK LOCATION

3 - (#3) BALL CHECK LOCATION

Install check balls into position as shown in illustration. If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.

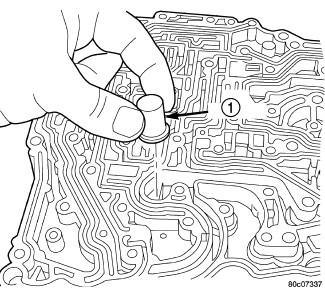

Fig 7: Installing Oil Screen To Transfer Plate
Courtesy of CHRYSLER LLC

1 - OIL SCREEN
Install the oil screen (1) to the transfer plate.

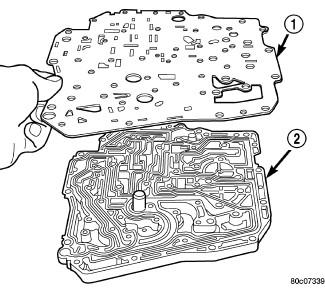

Fig 8: Installing Separator Plate To Transfer Plate
Courtesy of CHRYSLER LLC

1 - SEPARATOR PLATE

2 - TRANSFER PLATE

Install separator plate (1) to transfer plate (2).

Fig 9: Installing Separator Plate-to-transfer Plate Screws

Courtesy of CHRYSLER LLC

1 - SEPARATOR PLATE

2 - SCREW (2)

3 - TRANSFER PLATE

Install the two separator plate-to-transfer plate screws (2).

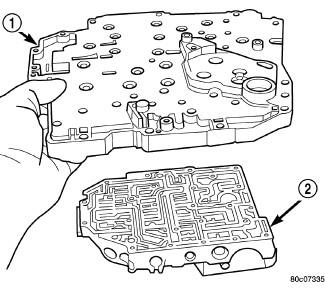

Fig 10: Installing Transfer Plate To Valve Body
Courtesy of CHRYSLER LLC

1 - TRANSFER PLATE

2 - VALVE BODY
Install the transfer plate (1) to the valve body (2).

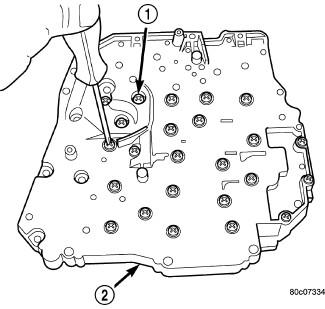

Fig 11: Installing Transfer Plate-to-valve Body Screws
Courtesy of CHRYSLER LLC

1 - SCREW (24)

2 - TRANSFER PLATE
Install the transfer plate-to-valve body screws (1) and torque to 5 N.m (45 in. lbs.).

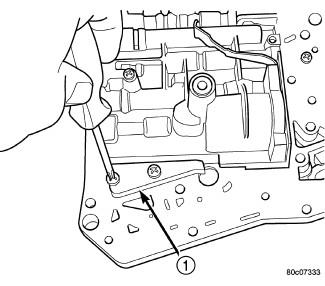

Fig 12: Installing Stiffener Plate
Courtesy of CHRYSLER LLC

1 - STIFFENER PLATE
Install the stiffener plate (1).

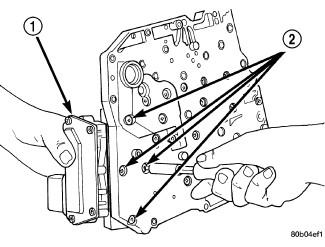

Fig 13: Installing Solenoid/Pressure Switch Assembly And Screws To Transfer Plate
Courtesy of CHRYSLER LLC

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

2 - RETAINING SCREWS

Install the solenoid/pressure switch assembly (1) and screws to the transfer plate and torque to 5.5 N.m (50 in. lbs.).

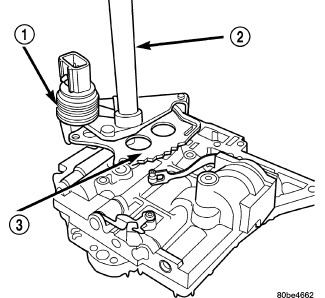

Fig 14: Installing Manual Shaft/Rooster Comb And Transmission Range Sensor To Valve Body

Courtesy of CHRYSLER LLC

1 - TRANSMISSION RANGE SENSOR

2 - MANUAL SHAFT

3 - ROOSTER COMB

Install the manual shaft/rooster comb (3) and transmission range sensor (1) to the valve body.

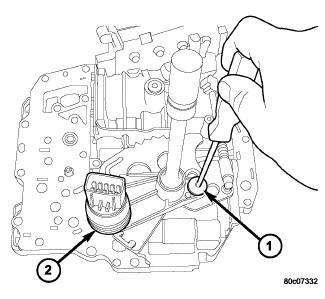

Fig 15: Installing Manual Shaft Seal
Courtesy of CHRYSLER LLC

1 - SCREW

2 - TRS
Install the TRS/manual shaft retaining screw (1) and torque to 5 N.m (45 in. lbs.).

Install manual shaft seal.

Fig 16: Identifying Variable Line Pressure Sensor & Pressure Control Solenoid

Courtesy of CHRYSLER LLC

1 - PRESSURE CONTROL SOLENOID

2 - LINE PRESSURE SENSOR

3 - SHOULDER SCREW

4 - VARIABLE LINE PRESSURE HEADER

5 - MANUAL SHAFT

6 - SCREWS

Install the variable line pressure header onto the manual shaft (5).
Install the shoulder screw (3) to hold the variable line pressure header (4) to the valve body.
Install the pressure control solenoid and line pressure sensor into the valve body.
Install the screws (6) to hold the pressure control solenoid (1) and line pressure sensor (2) to the valve body.
Install the electrical connectors to the pressure control solenoid (1) and the line pressure sensor (2).
