P0685-Auto Shutdown Control Circuit: Notes

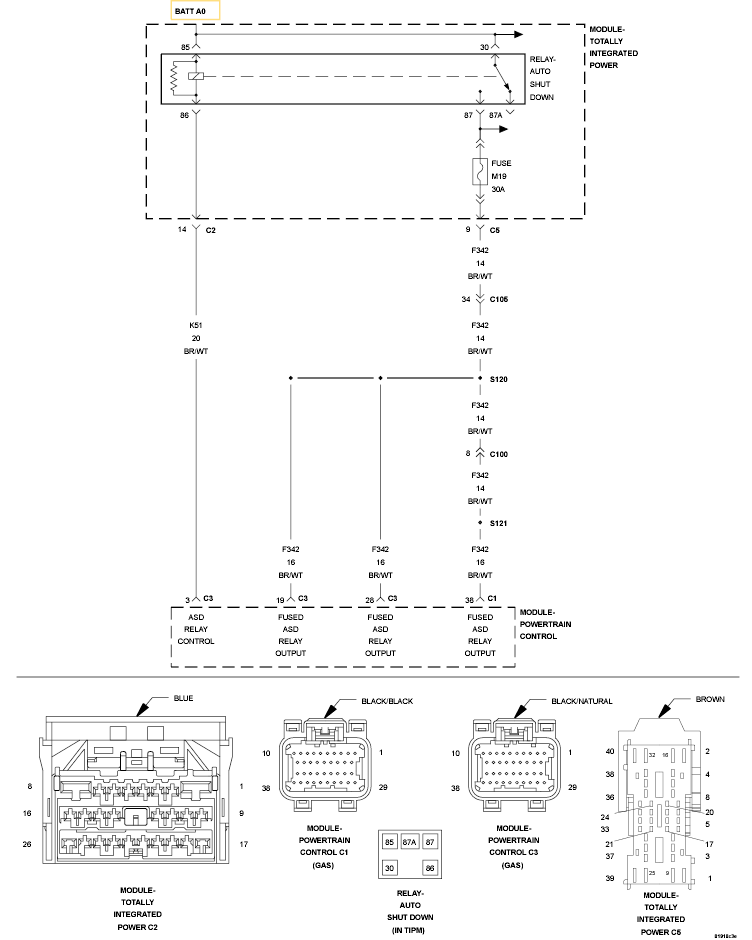

Fig 1: ASD Relay Control Wiring Diagram
GC0131934Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
