P0401-EGR System Performance: Notes

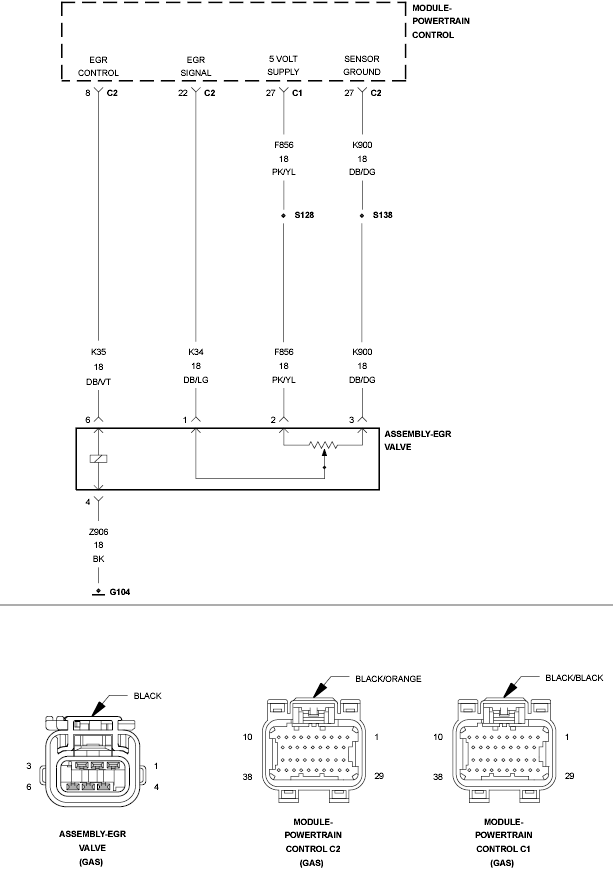

Fig 1: EGR Valve Circuit Wiring Diagram

GC0131915

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
