Sensor, Manifold Air Pressure (Map): Installation: Installation

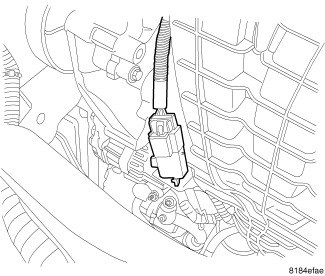

Fig 1: MAP Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install manifold absolute pressure (MAP) sensor to intake manifold.

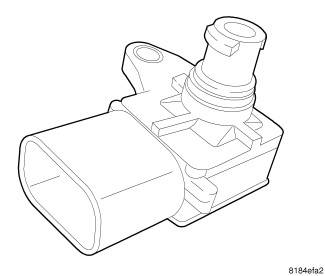

   Fig 2: MAP Sensor Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Tighten screw to 4.5 N.m (40 in. lbs.).
3. Connect electrical connector to sensor.
4. Connect the negative battery cable.
